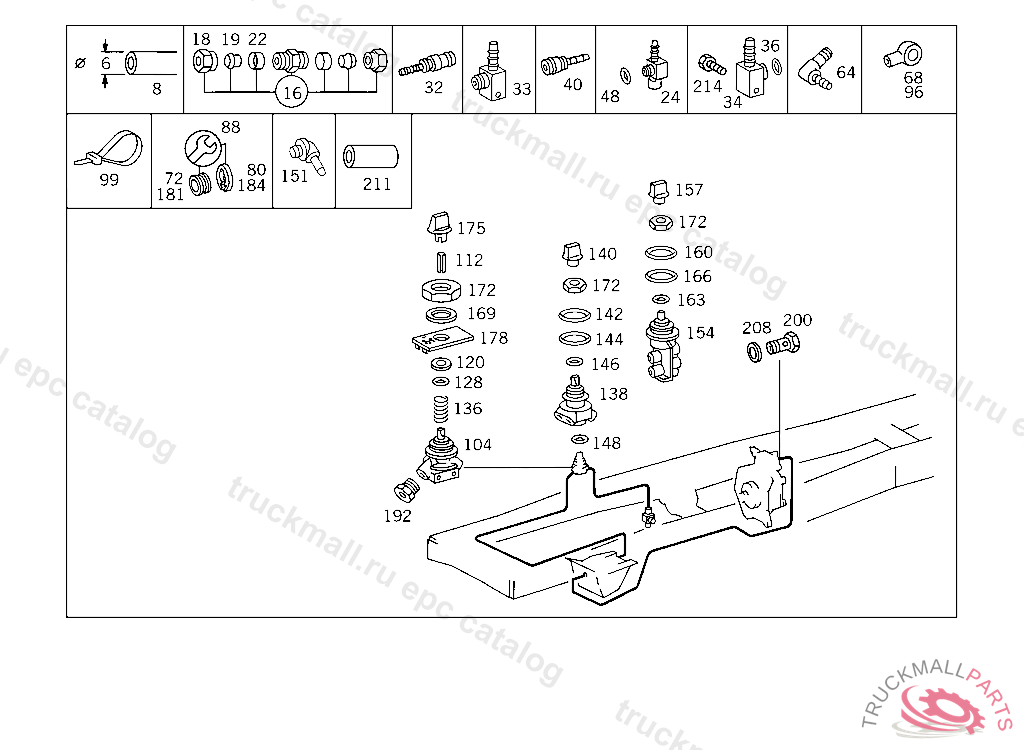

Поз.
Артикул
Описание
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
PLASTIC PIPE RISING PIPE 4X6 MM
16
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
18
UNION NUT
19
GLAND , Replaced By: A0019901667
19
SEAL CONE
22
SLEEVE LEAK LINE
24
CONNECTOR DISTRIBUTOR TO CAB
32
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
33
CONNECTOR
34
CONNECTOR
36
SEAL RING CONNECTOR 11.8X2 MM
36
SEAL RING , Replaced By: A0229973948
36
SEAL RING
40
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
48
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
64
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
68
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
72
LOCK RING LINE CONNECTION
72
SEAL RING , Replaced By: A0009940747
80
LOCK , Replaced By: A0009945448
80
LOCK LINE CONNECTION
88
REPAIR KIT , Replaced By: A0309971748
88
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
96
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
96
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
99
LOOM TIE LINE MOUNTING 280 MM
104
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
104
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
112
CLAMPING SLEEVE TOP WABCO
120
SEAL RING TOP WABCO
128
SEAL RING INSIDE WABCO
136
SPRING INSIDE WABCO
138
VALVE 3/2-WAY,P.T.O. CONTROL "BOSCH"
140
ACTUATING PART
142
SEAL RING
144
SEAL RING
146
SEAL RING
148
SEAL RING
151
PIPE SOCKET LINE CONNECTION
154
VALVE 4/2-WAY BOSCH
157
ACTUATING PART
160
SEAL RING
163
SEAL RING
166
SEAL RING
169
WASHER 3/2-WAY VALVE TO BRACKET
172
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
175
HANDLE 3/2-WAY VALVE TO BRACKET
178
GUIDE SIGN P.T.O. CONTROL
178
GUIDE SIGN P.T.O. CONTROL
178
GUIDE SIGN P.T.O. CONTROL
181
LOCK RING LINE CONNECTION
181
SEAL RING , Replaced By: A0009940747
184
LOCK , Replaced By: A0009945448
184
LOCK LINE CONNECTION
192
SCREW. UNION SCREW , Replaced By: A0009973734
192
SCREW. UNION SCREW LINE CONNECTION
200
HOLLOW SCREW LINE CONNECTION
200
HOLLOW SCREW HEATING CONNECTION
208
SEAL RING LINE CONNECTION
208
SEAL RING LINE CONNECTION
211
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
214
SCREW , Replaced By: N910105006005
214
SCREW , Replaced By: N304017006020
214
SCREW , Replaced By: N000000001479
214
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
214
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
214
SCREW LICENSE PLATE TO BRACKET
214
SCREW EXHAUST BRAKE SEPARATION POINT
999
BANJO UNION P.T.O. CONNECTION
999
COVERING IN PLACE OF SWITCH 82X44,5 MM
999
GUIDE SIGN P.T.O. CONTROL
