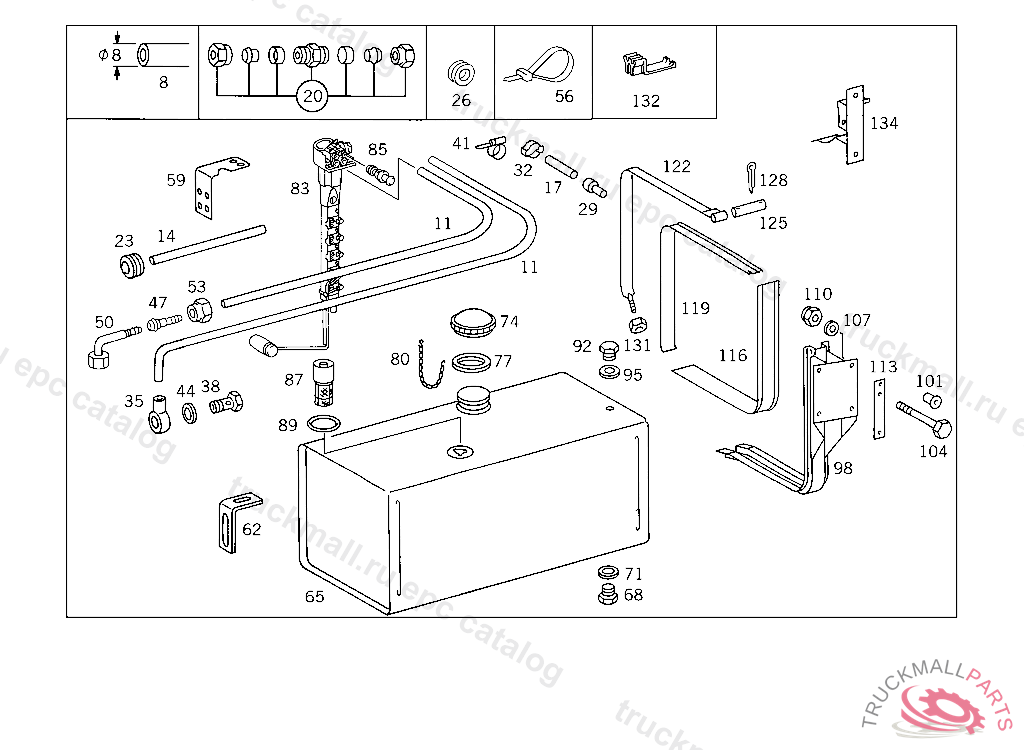

Поз.
Артикул
Описание
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
14
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
17
HOSE LEAK LINE
17
HOSE , Replaced By: A3054760126
20
FITTING (PARTS KIT),LINE RUPTURE
23
GROMMET LINE MOUNTING 50/45 MM
23
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
23
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
26
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
26
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
29
SLEEVE FEED
32
CLIP LEAK LINE
35
BANJO UNION , Replaced By: N000000000363
38
HOLLOW SCREW , Replaced By: N915036010108
38
HOLLOW SCREW FUEL LINE TO FEED PUMP
41
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
41
CLAMP , Replaced By: N000000000665
44
SEAL RING FUEL LINE TO FEED PUMP
47
FITTING RETURN
50
ELBOW FITTING RETURN
53
NUT. UNION NUT RETURN
56
LOOM TIE LINE MOUNTING
56
LOOM TIE LINE MOUNTING 280 MM
59
BRACKET AT TRANSMISSION
59
BRACKET AT ENGINE,REAR
62
BRACKET FUEL LINES TO TRANSMISSION
65
FUEL TANK400 L.,4 399369
68
SCREW PLUG AT TANK
71
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
74
FILLER CAP
74
FILLER CAP , Replaced By: A0004700305
77
SEAL RING
80
CHAIN FILLER CAP
83
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
83
SENDER UNIT , Replaced By: A0085428117
83
SENDER UNIT FUEL GAUGE
85
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
87
FUEL STRAINER FUEL TANK,K 169123
87
FUEL STRAINER FUEL TANK,K 169122
89
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
92
SCREW PLUG , Replaced By: N007604014110
92
SCREW PLUG FUEL TANK
95
SEAL RING FUEL LINE TO FEED PUMP
98
SUPPORT REAR TANK,5 758498
98
SUPPORT REAR TANK
98
SUPPORT REAR TANK,5 758498
98
SUPPORT REAR TANK
98
SUPPORT FUEL TANK TO FRAME
98
SUPPORT FRONT TANK,5 760519
98
SUPPORT REAR TANK,5 758498
98
SUPPORT REAR TANK
98
SUPPORT , Replaced By: A6564701042
98
SUPPORT
98
SUPPORT REAR TANK
98
SUPPORT REAR TANK,5 758498
98
SUPPORT REAR TANK,5 758497
98
SUPPORT FUEL TANK
98
SUPPORT FUEL TANK TO FRAME
98
SUPPORT REAR TANK,5 760519
98
SUPPORT FRONT TANK
98
SUPPORT REAR TANK,5 758497
98
SUPPORT FUEL TANK TO FRAME
98
SUPPORT REAR TANK
98
SUPPORT FRONT AND REAR TANKS
98
SUPPORT REAR TANK
98
SUPPORT FUEL TANK
98
SUPPORT FUEL TANK
98
SUPPORT REAR TANK,5 760518
98
SUPPORT REAR TANK,5 758497
98
SUPPORT FUEL TANK, VERSION A VERSION B
98
SUPPORT FUEL TANK TO FRAME
98
SUPPORT FRONT TANK
98
SUPPORT , Replaced By: A6564701042
98
SUPPORT , Replaced By: A3934700442
98
SUPPORT REAR TANK
98
SUPPORT FUEL TANK, UP TO 07.95
98
SUPPORT FUEL TANK
98
SUPPORT FRONT TANK
101
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
104
SCREW SUPPORT TO SIDE MEMBER M 14X45
104
SCREW STEERING SUPPORT TO FRAME M 14X50
104
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
104
SCREW STEERING SUPPORT TO FRAME M 14X55
104
SCREW APPARATUS SUPPORT TO FRAME
104
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
104
SCREW MOUNTING TO CONSOLE M 14X55
104
SCREW , Replaced By: N308676014012
104
SCREW , Replaced By: A9429901304
107
WASHER SPARE WHEEL CARRIER
110
NUT STEERING SUPPORT TO FRAME
110
NUT , Replaced By: N910113014000
113
SHIM SUPPORT TO SIDE MEMBER
113
SHIM SUPPORT TO FRAME 240X40X5 MM
116
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
119
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
122
STRAP FUEL TANK TO SUPPORT
125
PIN STRAP TO SUPPORT
128
COTTER PIN STRAP TO SUPPORT
131
NUT STRAP TO SUPPORT
132
BRACKET TO MOUNT FUEL LINES,K 114273
134
BRACKET AIR RESERVOIR,5 765578
999
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
999
BRACKET STRAP
