Главная
›
Mercedes
›
TRUCK
›
2538 L
›
658.418 DATACARD: CHASSIS-SA 5...../..
›
30 CONTROL
›
001 INTERMEDIATE BEARING
Mercedes N006799010001 - ШАЙБА

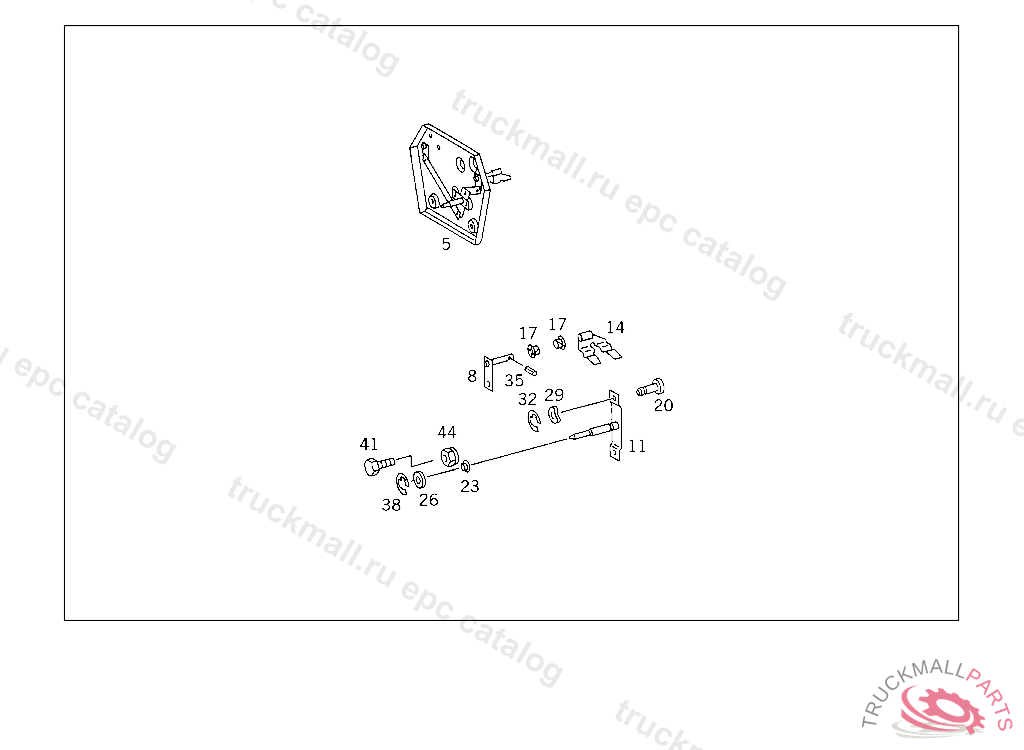

2538 L 658.418 DATACARD: CHASSIS-SA 5...../..
30 CONTROL - 001 INTERMEDIATE BEARING
Поз.
Артикул
Описание
5
A6555200264
COVER AIR DUCT
8
A6555200082
PLATE TOP LEFT AND RIGHT
11
A6555200149
LEVER LOCKING MECHANISM
14
A6555200841
BRACKET
14
A6555200941
BRACKET
17
A3813020050
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
20
A6555280374
PIN PLATE TO PLATE AND TO LEVER
23
A6555280075
WASHER PLATE TO LEVER
26
N000125013008
WASHER
29
N900055008002
SPRING WASHER SHIFTING CYLINDER TO YOKE
32
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
35
N001481005004
CLAMPING SLEEVE BRACKET TO PLATE
38
N006799010001
LOCK PLATE INTERMEDIATE BEARING
41
N000933008212
SCREW , Replaced By: N304017008016
41
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
N913004008004
NUT , Replaced By: N913004008001
