Mercedes N304017006018 - Болт

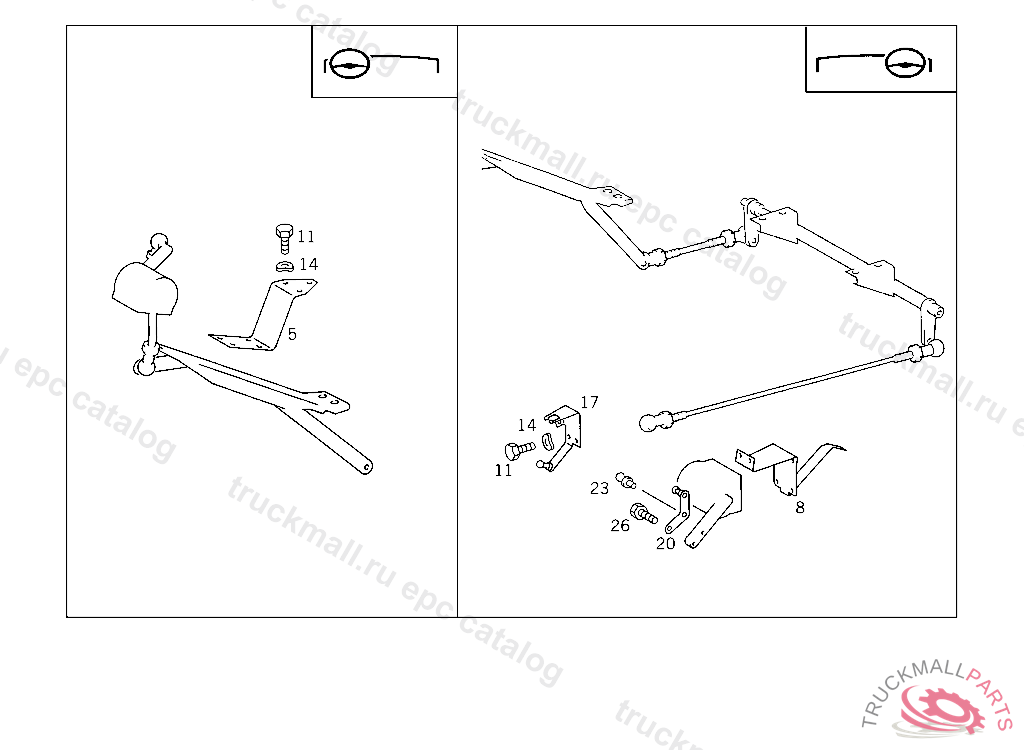

2538 L 658.418 DATACARD: CHASSIS-SA 5...../..

26 TRANSMISSION - 001 EPS SENDER UNIT

Поз.
Артикул
Описание
5
A6573000140
BRACKET SENDER UNIT
8
A6573000440
BRACKET SENDER UNIT
11
N304017006016
SCREW PUMP TO BRACKET
11
N304017006016
SCREW PUMP TO BRACKET
11
N000933006183
SCREW , Replaced By: N304017006016
14
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
14
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
17
A6573000640
BRACKET WIRE CABLE
20
A6573000540
BRACKET CONTROL LEVER
23
N000000004467
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
23
N071803010301
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
26
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
N000933006103
SCREW , Replaced By: N304017006018
