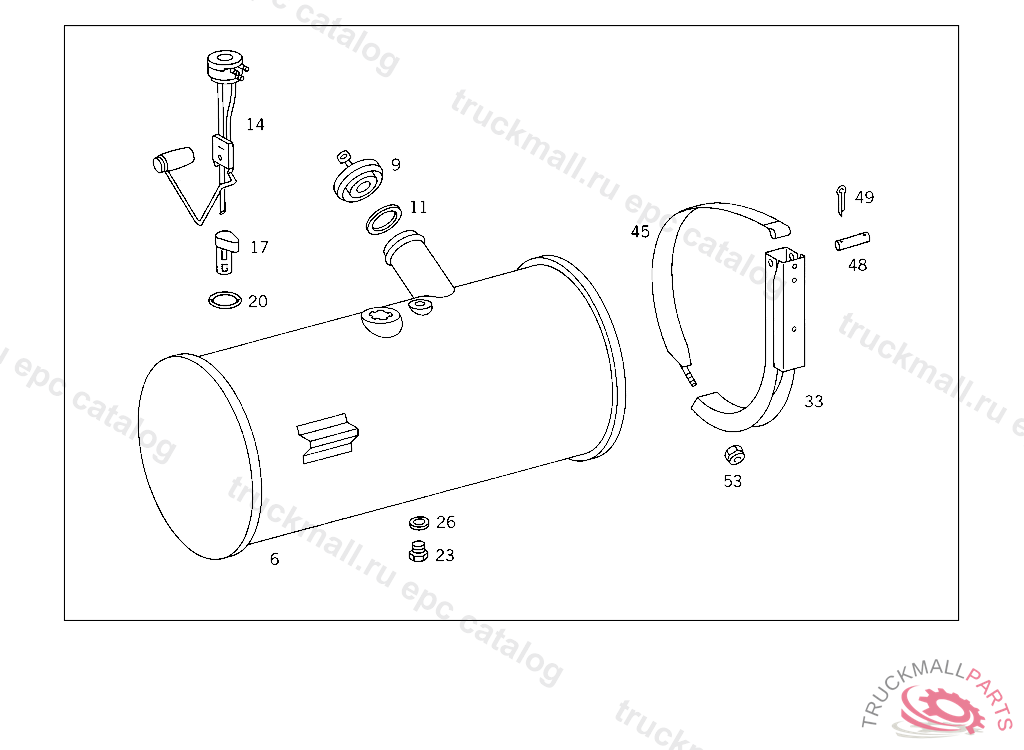

Поз.
Артикул
Описание
6
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
9
FILLER CAP ,K 057755
9
FILLER CAP ,K 057755, Replaced By: A0004700405, +001A6707600205
11
SEAL RING
14
SENDER UNIT FUEL GAUGE,K 169123
14
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
14
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
17
FUEL STRAINER FUEL TANK,K 169122
20
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
23
SCREW PLUG FUEL DISCHARGE
26
SEAL RING FUEL LINE TO FEED PUMP
33
SUPPORT FUEL TANK
45
STRAP FUEL TANK
48
PIN STRAP TO SUPPORT
49
COTTER PIN STRAP TO SUPPORT
53
NUT SUPPORT TO SIDE MEMBER
999
KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
999
KEY HEAD
999
KEY BLANK YMOS
999
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
999
TUMBLER WITH KEY, ANY LOCK,K 057755
