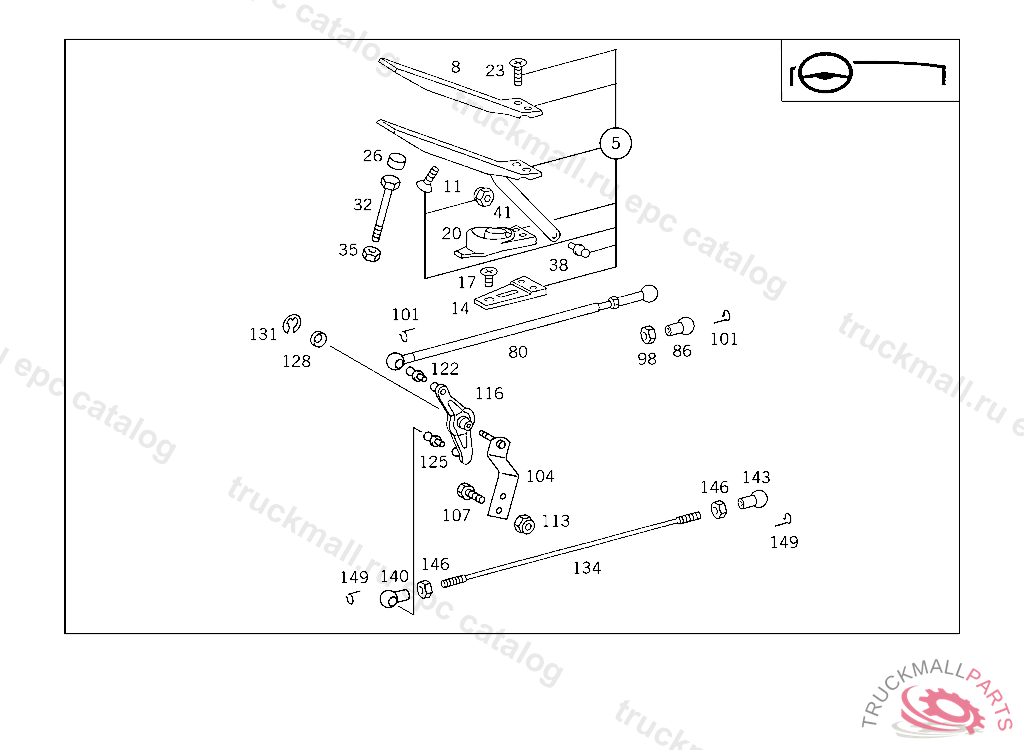

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
32
SCREW VALVE TO BRACKET, Replaced By: N304014008002
32
SCREW VALVE TO BRACKET
35
NUT
38
BALL PIVOT LOAD SENSOR
41
NUT PUMP TO BRACKET
41
NUT , Replaced By: N913004006001
80
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
80
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
86
BALL SOCKET PULL ROD TO LEVER
98
NUT BALL PIVOT TO LEVER
101
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
104
BEARING BRACKET INTERMEDIATE BEARING
107
SCREW BRACKET TO CROSS CONNECTION STRUT
107
SCREW , Replaced By: N304017008034
113
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
113
NUT , Replaced By: N913004008001
113
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
116
LEVER INTERMEDIATE BEARING
122
BALL STUD. BALL PIVOT TOP B10X4,5 MM
125
BALL PIVOT BOTTOM B13X5 MM
128
COVERING INTERMEDIATE BEARING
131
LOCK PLATE INTERMEDIATE BEARING
134
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
140
BALL SOCKET ROD TO BALL PIVOT
143
BALL SOCKET ROD TO BALL PIVOT
146
NUT
149
SECURING CLIP. CIRCLIP
