Mercedes
TRUCK
2638/L,2644/L,2650,2653 3538
659.028
52 SHEET METAL,AIR INTAKE

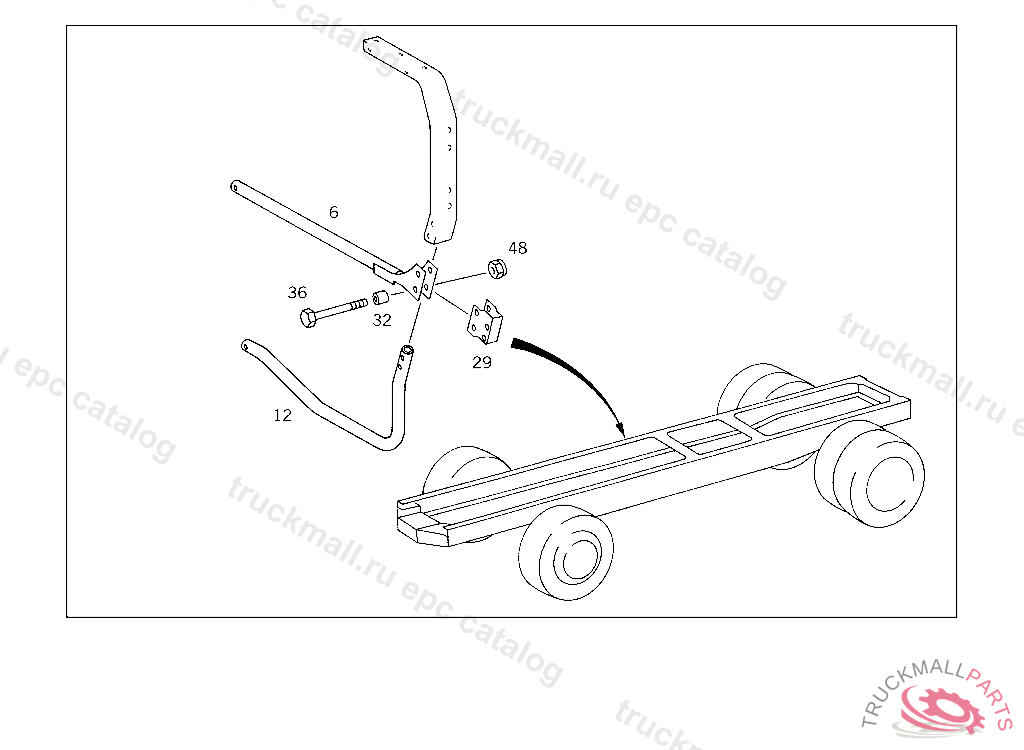

001 SIDE PROTECTION DEVICE IL.1

Mercedes N000931010268 - SCHRAUBE M 10 X 70

2638/L,2644/L,2650,2653 3538 659.028

52 SHEET METAL,AIR INTAKE - 001 SIDE PROTECTION DEVICE IL.1

Поз.
Артикул
Описание
6
A6525200732
STAY UNDERRUN PROTECTION,RIGHT
6
A6525200632
STAY UNDERRUN PROTECTION,RIGHT, NOT USED
6
A6525201032
STAY UNDERRUN PROTECTION,RIGHT
12
A6525202351
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525200451
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525203151
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525202451
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525200351
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525202151
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525200151
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525201351
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525200851
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525202051
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525200751
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525203951
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525202551
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525202751
CLAMP UNDERRUN PROTECTION,RIGHT
12
A6525201151
CLAMP , Replaced By: A6525202751
29
A6525225040
BRACKET UNDERRUN PROTECTION AND BRACKET TO FRAME
32
A2013261053
SPACER TUBE STRUT TO SUPPORT
36
N304017010055
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
36
A0019909004
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
36
A0019909104
SCREW , Replaced By: N910105010012
36
N000931010268
SCREW , Replaced By: N304017010050
36
N000933010280
SCREW , Replaced By: N304017010050
36
A0019909404
SCREW SHIFTING ROD TO SHIFT LEVER
36
A0019909001
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
36
N304017010050
SCREW , Replaced By: N304017010055
36
N000933010076
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X70
48
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
48
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
48
N910112010001
NUT , Replaced By: N913023010002
48
N913004010008
NUT , Replaced By: N910113010000
48
N910113010000
NUT STRAP TO BRACKET
