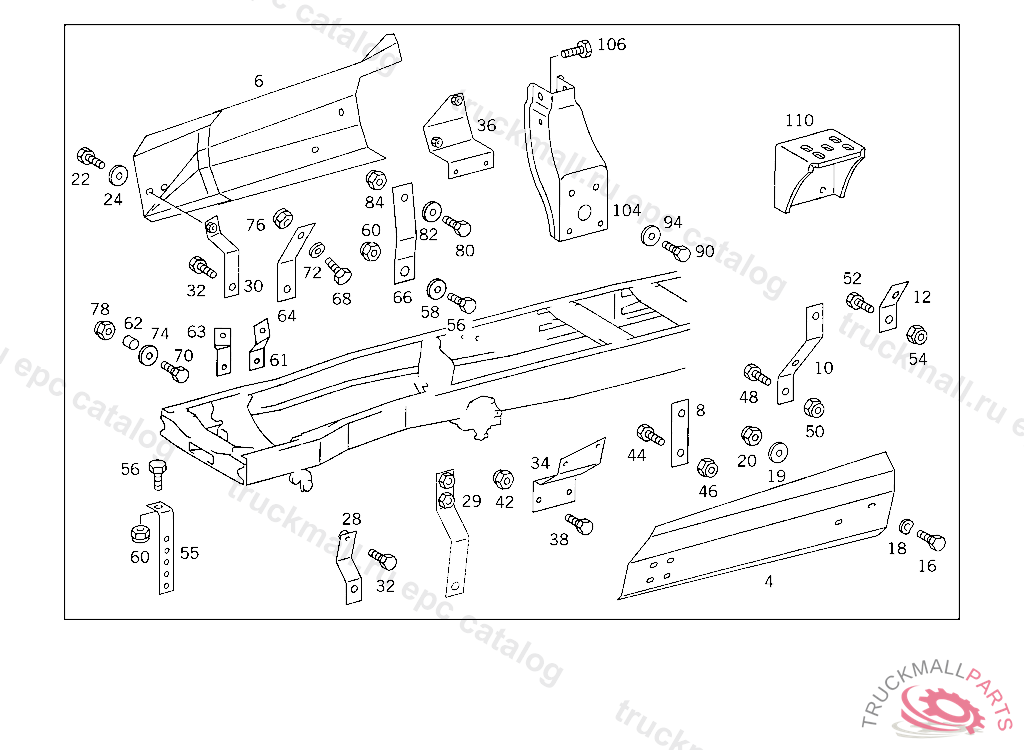

Поз.
Артикул
Описание
4
COVERING RIGHT
4
COVERING LEFT
4
ANTINOISE CAPSULE RIGHT
4
COVERING LEFT
4
COVERING RIGHT,4 921200
4
COVERING LEFT
4
ANTINOISE CAPSULE LEFT
4
ANTINOISE CAPSULE LEFT,4 921199
4
ANTINOISE CAPSULE RIGHT,4 921199
4
COVERING LEFT
4
COVERING ,5 349379
4
COVERING LEFT
4
COVERING RIGHT
4
COVERING LEFT
4
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455242633, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
4
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455202422, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
4
COVERING LEFT,4 921200
4
COVERING LEFT
4
COVERING RIGHT
6
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455202422, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
6
COVERING RIGHT
6
COVERING RIGHT
6
COVERING RIGHT
6
COVERING ,5 349379
6
COVERING RIGHT
8
BRACKET COVERING
10
BRACKET COVERING
12
BRACKET REAR
12
BRACKET COVERING
16
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
18
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
18
SPRING WASHER , Replaced By: N000137008212
19
WASHER , Replaced By: N009021008213
19
WASHER BRACKET TO LEFT SIDE MEMBER
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
22
SCREW , Replaced By: N304017008016
22
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
24
WASHER BRACKET TO LEFT SIDE MEMBER
24
WASHER , Replaced By: N009021008213
28
BRACKET LEFT FRONT
29
BRACKET LEFT FRONT
30
BRACKET RIGHT FRONT,5 599989
30
BRACKET RIGHT FRONT
30
BRACKET RIGHT FRONT,5 3493795 599988
30
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6565203844
32
SCREW , Replaced By: N308676016020
32
SCREW CONSOLE TO FRAME
34
BRACKET LEFT
34
BRACKET LEFT,5 349379
36
BRACKET RIGHT,5 349379
36
BRACKET RIGHT
38
SCREW , Replaced By: N308676012026
38
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
38
SCREW BRACKET TO LEFT SIDE MEMBER
42
NUT SUPPORT TO SIDE MEMBER
44
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
44
SCREW , Replaced By: N308676014020
46
NUT , Replaced By: N910113014001
46
NUT BRACKET TO SIDE MEMBER
48
SCREW SUPPORT TO SIDE MEMBER
48
SCREW BRACKET TO FRAME M 12X35
48
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
48
SCREW , Replaced By: N308676012012
48
SCREW , Replaced By: N000961012025
50
NUT SUPPORT TO SIDE MEMBER
52
SCREW BRACKET TO FRAME M 12X35
52
SCREW SUPPORT TO SIDE MEMBER
52
SCREW , Replaced By: N000961012025
54
NUT SUPPORT TO SIDE MEMBER
55
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW PIPE CLAMP
56
SCREW , Replaced By: N304017008021
56
SCREW , Replaced By: N304017010002
58
WASHER , Replaced By: N009021008213
58
WASHER BRACKET TO LEFT SIDE MEMBER
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT , Replaced By: N913004008001
60
NUT , Replaced By: N910113010000
60
NUT STRAP TO BRACKET
61
BRACKET COVER PLATE TO SUPPORT,5 491097
62
BEARING TORSION BAR BEARING
62
SPACER TUBE , Replaced By: A3093200073
63
BRACKET COVER PLATE TO SUPPORT,5 491097
64
BRACKET , Replaced By: A3805450138
64
MOLDED PIECE HAND PUMP
66
BRACKET COVERING TO CAB
68
SCREW PIPE CLAMP
68
SCREW BRACKET TO CROSS CONNECTION STRUT
68
SCREW , Replaced By: N304017008034
68
SCREW , Replaced By: N304017008021
70
SCREW 3/2-WAY VALVE TO BRACKET
72
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
74
WASHER COMPRESSED AIR LINE TO BRACKET
74
WASHER , Replaced By: N009021006208
76
NUT , Replaced By: N913004008001
76
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
78
NUT PUMP TO BRACKET
78
NUT , Replaced By: N913004006001
80
SCREW CAB FLOOR COVERING M 6X25
82
WASHER COMPRESSED AIR LINE TO BRACKET
82
WASHER , Replaced By: N009021006208
84
NUT , Replaced By: N913004006001
84
NUT PUMP TO BRACKET
90
SCREW BEARING BRACKET TO FRAME
94
WASHER BRACKET TO LEFT SIDE MEMBER
94
WASHER , Replaced By: N009021008213
104
BRACKET RIGHT SHOCK ABSORBER,5 349378
106
SCREW PIPE CLAMP
106
SCREW , Replaced By: N304017008021
110
CONSOLE , Replaced By: A6553170001
110
CONSOLE , Replaced By: A3873170001
110
CONSOLE CAB SUSPENSION
999
COVER PLATE SHOCK ABSORBER
999
ANTINOISE CAPSULE LEFT
999
ANTINOISE CAPSULE RIGHT
999
COVERING RIGHT
999
COVERING RIGHT,K 003030K 037713
999
COVERING LEFT
