Поз.
Артикул
Описание

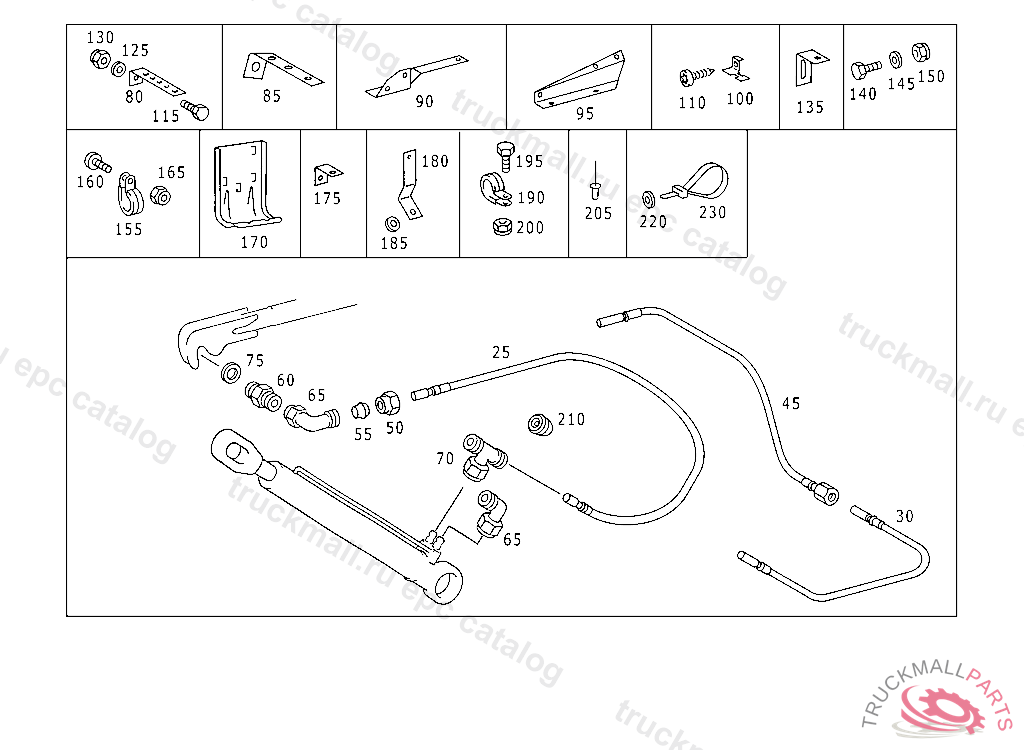

25
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
25
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
25
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
25
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 599799, Replaced By: A6565500259
25
HOSE , Replaced By: A6565500159
25
HOSE , Replaced By: A3805530082
25
HOSE , Replaced By: A6255531382
25
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
25
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
30
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL NO.1 , 2500MM
30
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
45
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
45
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 599799, Replaced By: A6565500359
50
UNION NUT
55
SEAL CONE
55
GLAND , Replaced By: A0019901667
60
SCREW-IN FITTING , Replaced By: A0029978472
60
FITTING 3/2-WAY VALVE,CONNECTION: "30"
65
FITTING , Replaced By: A0019909871
65
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
65
FITTING FROM PUMP TO CYLINDER
70
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
70
T-FITTING. FITTING AT INJECTION PUMP
70
FITTING FROM PUMP TO CYLINDER
75
SEAL RING LINE CONNECTION
80
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
85
BRACKET AT CAB SIDE MEMBER
90
BRACKET HIGH PRESSURE HOSE TO CAB
95
BRACKET HIGH PRESSURE HOSE TO CAB
100
BRACKET HIGH PRESSURE HOSE TO CAB
100
BRACKET HIGH PRESSURE HOSE TO CAB
110
SHEET METAL SCREW OIL LINE MOUNTING
110
LENS HEAD. TAPPING SCREW , Replaced By: N007981004258
115
SCREW , Replaced By: N304017010002
115
SCREW BRACKET TO SIDE MEMBER
115
SCREW REAR EXHAUST PIPE TO MUFFLER
125
WASHER RADIATOR TO RUBBER MOUNTING
125
WASHER , Replaced By: N000125010532
130
NUT , Replaced By: N910113010000
130
NUT STRAP TO BRACKET
135
BRACKET FUEL LINE TO BELL HOUSING
135
BRACKET , Replaced By: A6454310740
140
SCREW , Replaced By: N304017008021
140
SCREW PIPE CLAMP
145
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
150
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
150
NUT , Replaced By: N913004008001
155
CLAMP ,K 147121, Replaced By: N000000000319
155
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
160
SCREW CLAMP TO BRACKET
160
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
165
NUT , Replaced By: N913004006001
165
NUT PUMP TO BRACKET
170
BRACKET HIGH PRESSURE HOSE TO CAB
175
ANGLE LINE MOUNTING
180
BRACKET HIGH PRESSURE HOSE TO CAB
185
WASHER EXHAUST MUFFLER TO STRAP
185
WASHER , Replaced By: N000125008443
190
CLAMP SENSOR CABLE TO FRONT AXLE
195
SCREW PUMP TO BRACKET
195
SCREW , Replaced By: N304017006016
200
NUT , Replaced By: N913004006001
200
NUT PUMP TO BRACKET
205
RIVET , NOT USED
210
GROMMET , Replaced By: A1109870039
210
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
220
WASHER BRACKET TO LEFT SIDE MEMBER
220
WASHER BRACKET TO CROSS MEMBER
230
LOOM TIE , Replaced By: A0019978490
230
LOOM TIE LINE MOUNTING 280 MM
230
LOOM TIE LINE MOUNTING
999
T-FITTING EXHAUST-BRAKE POWER CYLINDER
