Поз.
Артикул
Описание
5

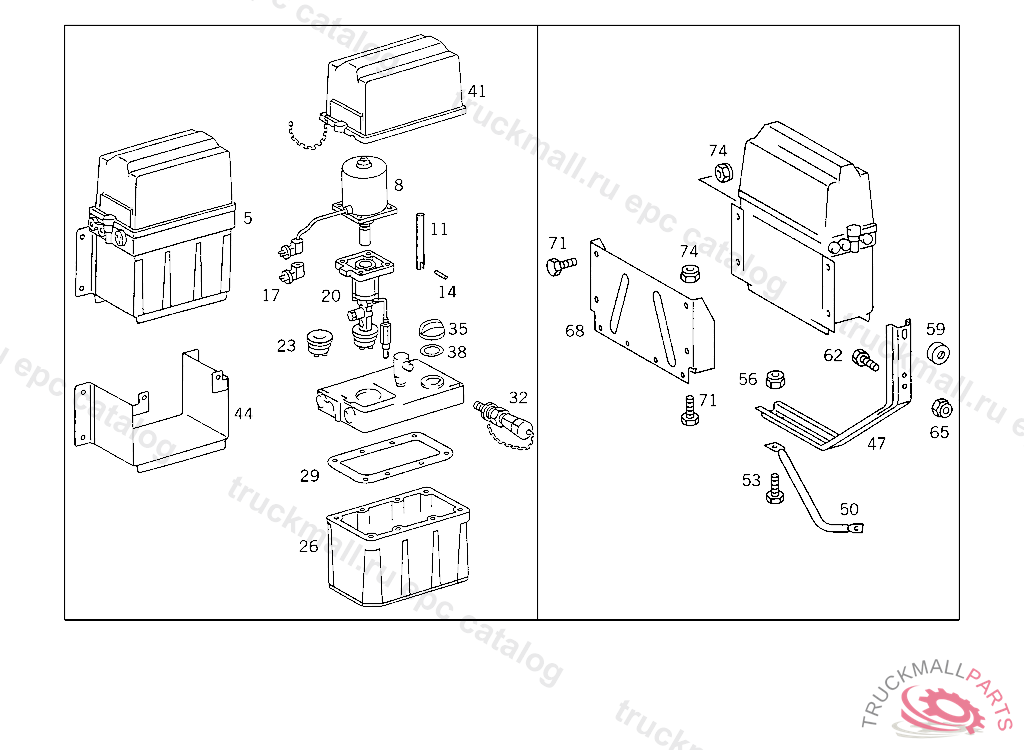

PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
8
ELECTRIC MOTOR , Replaced By: A0005402488
8
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
11
SHAFT
11
SHAFT , Replaced By: A0005710135
14
CLAMPING PIN2X12 MM
17
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
20
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
20
SUCTION PIPE , Replaced By: A0005700256
23
PUMP , Replaced By: A0005719401
23
PUMP WITH GEAR BEKA-MAX
26
RESERVOIR PUMP BEKA-MAX
26
RESERVOIR , Replaced By: A0005700204
29
SEAL RING , Replaced By: A0005710780
29
GASKETBEKA-MAX
32
VALVE GREASE FILLING BEKA-MAX
32
VALVE , Replaced By: A0005711614
35
COVER GREASE FILLING
38
GASKET
38
GASKET , Replaced By: A1020180380
41
COVER PUMP BEKA-MAX
41
COVER , Replaced By: A0005711703
44
RETAINING PLATE PUMP BEKA-MAX,TO 000 571 54 01,70 01
44
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
47
CONSOLE CENTRAL LUBRICATION PUMP
47
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205200733
47
CONSOLE CENTRAL LUBRICATION PUMP
47
CONSOLE PUMP TO REAR CROSS MEMBER SA 26630, 26631, 33003, 33004, FOR SEMITRAILERS
47
CONSOLE OIL TANK
47
SUPPORT , Replaced By: A6205280939
50
BRACKET SUPPORT TO FRAME
53
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
56
NUT SUPPORT TO SIDE MEMBER
59
SHIM COMPRESSED AIR LINE TO ENGINE
59
SHIM , Replaced By: A6455280184
62
SCREW , Replaced By: N308676016006
62
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
65
NUT , Replaced By: N910113016001
65
NUT CONSOLE TO SUPPORT
68
CONSOLE CENTRAL LUBRICATION PUMP
68
CONSOLE CENTRAL LUBRICATION PUMP
68
CONSOLE CENTRAL LUBRICATION PUMP
71
SCREW EXHAUST PIPE TO BRACKET
71
SCREW , Replaced By: A4609900601
74
NUT , Replaced By: N913004008001
999
CONSOLE PUMP TO FRAME SIDE MEMBER SA 26687/22/25/26,33003/10/12,33004/14, NOT FOR CHASSIS MODEL 652
999
BRACKET PUMP TO REAR CROSS MEMBER SA 33.529/01, FOR SEMITRAILERS
