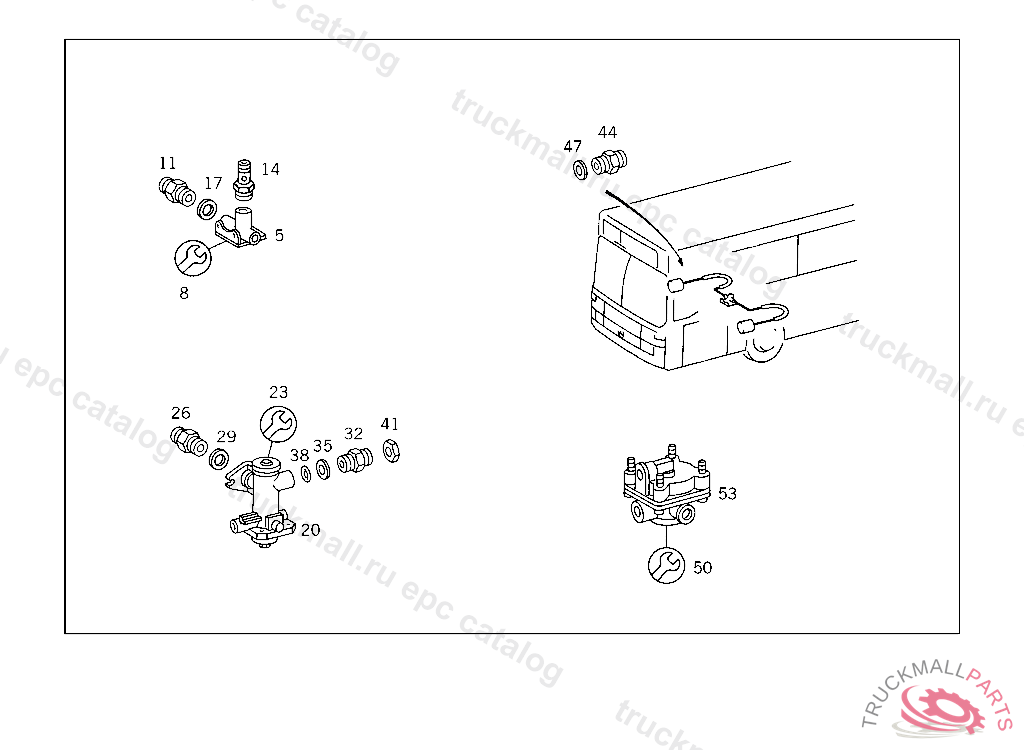

Поз.
Артикул
Описание
5
VALVE , Replaced By: A6934297144
5
VALVE (QUICK BREATHER VALVE) VARGA
5
VALVE (QUICK BREATHER VALVE) VARGA
8
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
8
REPAIR KITTO A 364 429 70 44
11
T-FITTING
11
DISTRIBUTOR QUICK-RELEASE VALVE
14
T-FITTING QUICK-RELEASE VALVE
17
SEAL RINGTO 006 997 00 72
20
VALVE (PRESSURE LIMIT VALVE) 3.5 BAR
23
REPAIR KIT , Replaced By: A0024292844
26
T-FITTING IN-LINE FILTER,CONNECTIONS: "1,2"
26
FITTING PRESSURE LIMIT VALVE
29
SEAL RING LINE CONNECTION
32
FITTING IN-LINE FILTER,CONNECTIONS: "1,2"
32
T-FITTING IN-LINE FILTER,CONNECTIONS: "1,2"
35
THRUST RING CHECK VALVE TO AIR RESERVOIR
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
38
O-RING CHECK VALVE TO AIR RESERVOIR
41
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
44
FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
44
LOCK NUT AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
47
SEAL RINGTO 006 997 00 72
50
VALVE (RELAY VALVE),REAR AXLE
50
VALVE (RELAY VALVE) WABCO
53
REPAIR KITWABCO
53
REPAIR KIT SMALL SCOPE TO 001 429 68 44
