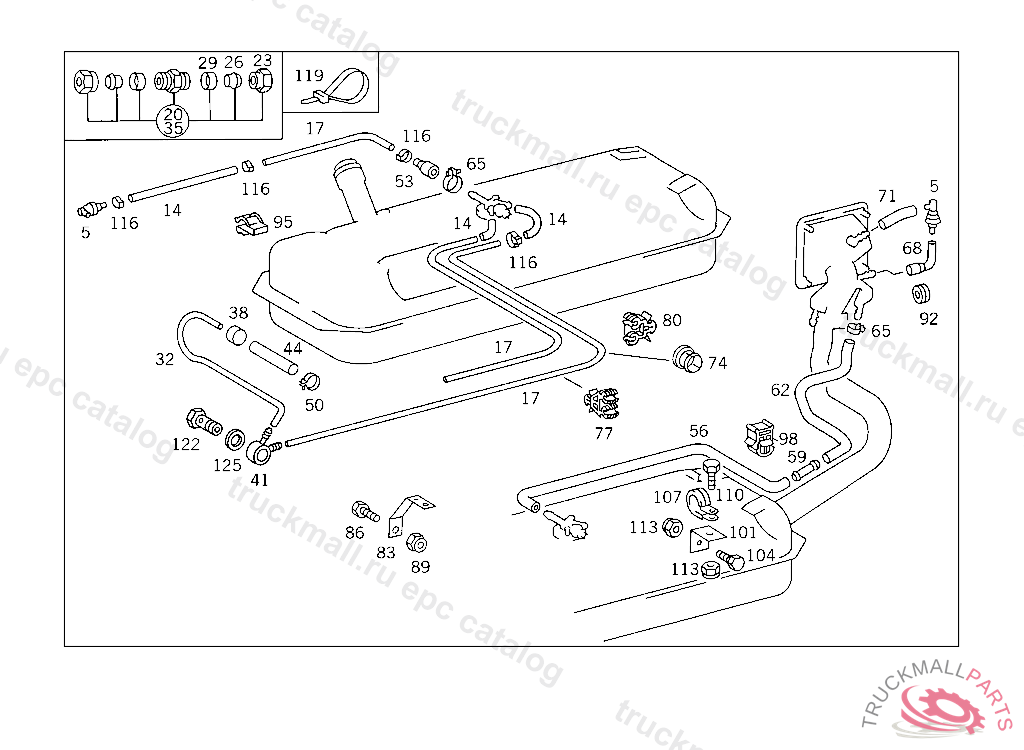

Поз.
Артикул
Описание
5
VALVE ,K 169122
5
VALVE ,K 169122
14
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
17
PLASTIC PIPE AERATION, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE
23
UNION NUT LINE CONNECTION
26
GLAND LINE CONNECTION
29
SLEEVE LINE CONNECTION
32
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
35
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
38
SLEEVE LEAK LINE
41
BANJO UNION FROM TANK TO PUMP,303383
41
BANJO UNION , Replaced By: A0009909288
44
HOSE LEAK LINE, ORDER BY THE METER
50
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
56
HOSE , Replaced By: A1234763026
56
HOSE FROM VENT PIPE TO FILLER NECK 400 MM, 000 098845 003 049444 007 042062 083 000290 086 000150 093 000121 102 079297 103 079274 105 099374 183 000405 190 000351
59
LINE FROM FUEL TANK TO FILLER NECK, 961992 N 000000 P 000000
62
BREATHER PIPE FROM FUEL TANK TO FILLER NECK, 961992 N 000000 P 000000
65
CLAMP FROM VENT PIPE TO FILLER NECK
68
BREATHER PIPE FROM FILLER NECK TO VENT VALVE
71
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
71
HOSE
74
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
74
BUSHING , Replaced By: A0009973481
77
BRACKET FEED LINE AND RETURN LINE TO SIDE MEMBER
80
BRACKET PUMP TO FRAME SIDE MEMBER
83
BRACKET FEED LINE AND RETURN LINE
86
SCREW BRACKET TO CONSOLE
89
NUT CROSS MEMBER TO SIDE MEMBERS
92
GROMMET BREATHER PIPE TO BODY
98
CLIP ,303365
101
BRACKET HEATING PIPE
104
SCREW COVER PLATE TO COVER PLATE M 6 X 12
107
CLAMP DELIVERY AND SUCTION LINES TO FRAME
107
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
110
SCREW LICENSE PLATE TO BRACKET
113
NUT HEATING PIPE TO BRACKET
116
LOOM TIE VENT VALVE TO FUEL TANK
119
LOOM TIE LINE MOUNTING
122
HOLLOW SCREW FUEL LINE TO FEED PUMP
122
HOLLOW SCREW , Replaced By: N915036010108
125
SEAL RING FUEL TANK
999
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
999
INTERMEDIATE PIECE FEED LINE AND RETURN LINE,K 169122
999
CLIP LEAK LINE
999
FITTING , Replaced By: A0029905971
999
RUBBER RING
999
HOSE LEAK LINE
999
HOSE FROM FUEL TANK TO FILLER NECK
999
HOSE , Replaced By: A1149971882
999
BRACKET FUEL LINE TO CROSS MEMBER
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP LINE CONNECTION
999
CLAMP , Replaced By: N000000000665
