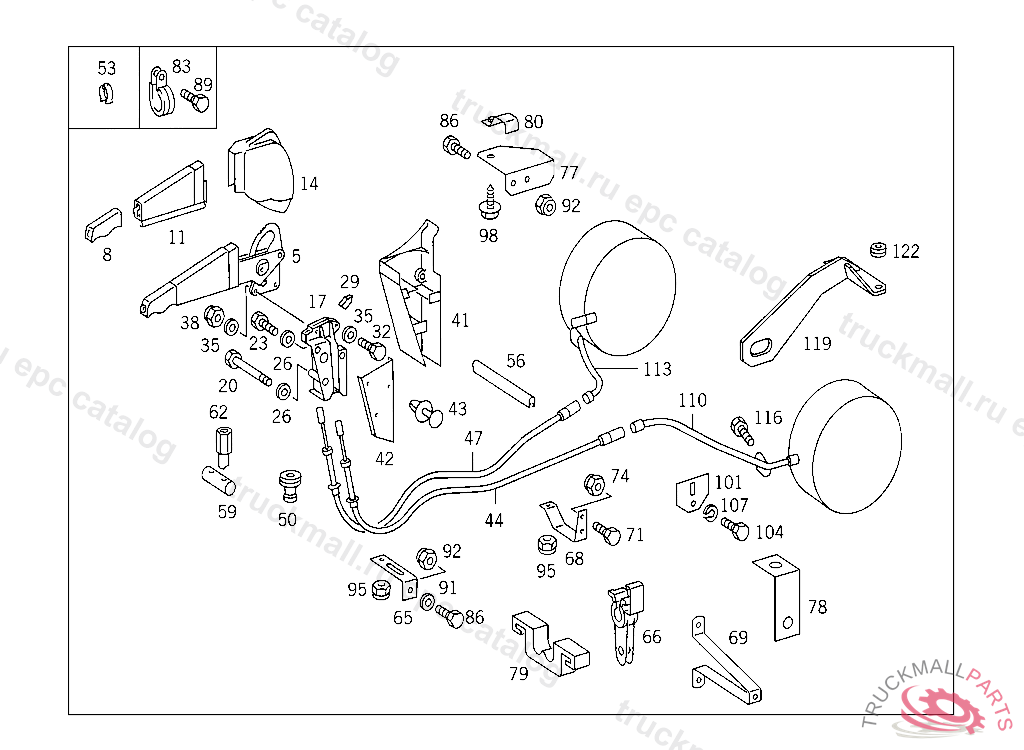

Поз.
Артикул
Описание
5
BRAKE LEVER , NO.8650I.......I.......I I II
8
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
11
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8316I.......I.......I I II .......I.......INO.7C52I I II
14
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
17
CONSOLE
17
CONSOLE
20
SCREW. HEXAGON HEAD BOLT RADIATOR PROTECTION,BOTTOM
23
HEXAGON HEAD BOLT BRACKET TO BRACKET
26
WASHER CONSOLE TO CAB
29
STOP BUFFER. DAMPING RING
32
SCREW CONNECTOR TO REAR SHIFTING ROD
35
WASHER RADIATOR TO RUBBER MOUNTING
38
NUT CROSS MEMBER TO SIDE MEMBERS
41
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
44
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE FRONT LEFT
44
BRAKE CABLE FRONT LEFT
47
BRAKE CABLE FRONT RIGHT
47
BRAKE CABLE FRONT RIGHT
47
BRAKE CABLE FRONT RIGHT
50
GROMMET
53
SPRING BRAKE CABLE
56
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
59
PIN BRAKE CABLE TO BRAKE LEVER
62
NUT BRAKE CABLE TO BRAKE LEVER
65
BRACKET LINE MOUNTING
66
CLIP BRAKE CABLE, N 000001 P 130067
69
BRACKET BRAKE CABLE
79
BRACKET BRAKE CABLE
83
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
86
SCREW CABLE HARNESS MOUNTING
89
SCREW CAB FLOOR COVERING M 6X25
91
WASHER EXHAUST MUFFLER TO STRAP
92
NUT STRAP TO BRACKET
95
NUT HEATING PIPE TO BRACKET
101
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
104
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
110
BRAKE CABLE REAR LEFT SA20487/01 / CODE B19
110
BRAKE CABLE REAR LEFT 1054 MM, NOTE BRAKE CABLE IN REAR AXLE MODEL DESIGNATION.
110
BRAKE CABLE , Replaced By: A6684205085
113
BRAKE CABLE REAR RIGHT 1154 MM, NOTE BRAKE CABLE IN REAR AXLE MODEL DESIGNATION.
113
BRAKE CABLE , Replaced By: A6684204985
113
BRAKE CABLE REAR RIGHT SA20487/01 / CODE B19
119
BRACKET
119
BRACKET BRAKE CABLE TO REAR AXLE,RIGHT
122
GROMMET LINE THRU LEFT SIDE MEMBER
