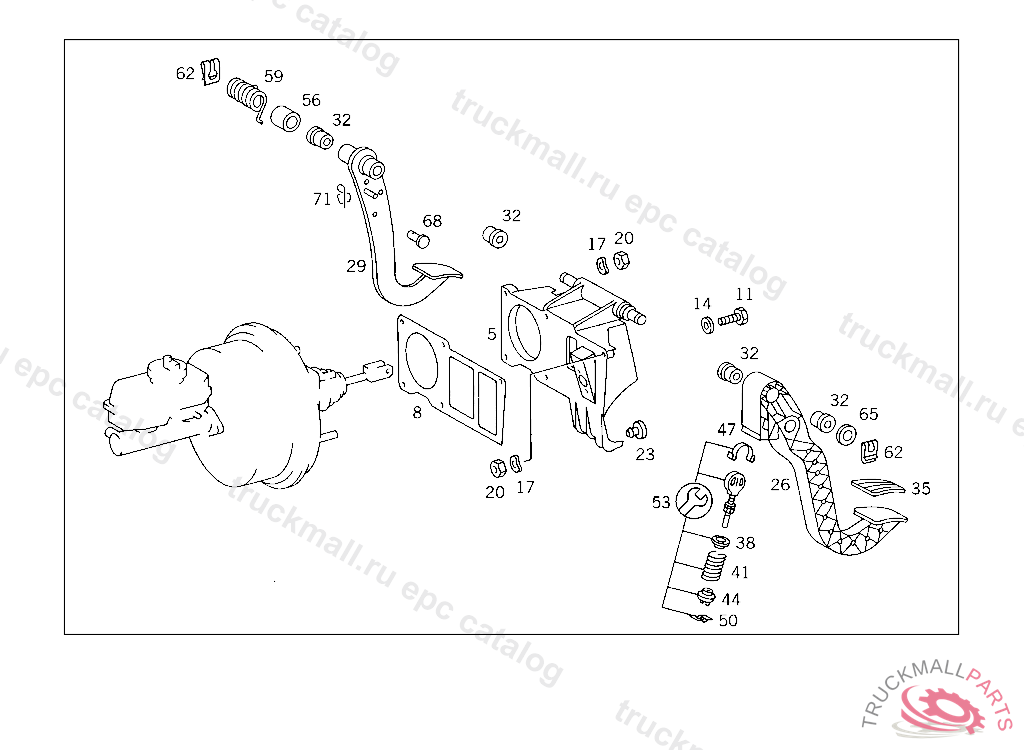

Поз.
Артикул
Описание
5
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
8
GASKET BEARING BRACKET TO CAB
11
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
14
WASHER EXHAUST MUFFLER TO STRAP
17
SPRING WASHER , Replaced By: N000137008212
17
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
20
NUT STRAP TO BRACKET
23
STOP , Replaced By: A6882917186
26
PEDAL CLUTCH
29
PEDAL , Replaced By: A6672900518
29
PEDAL (BRAKE PEDAL), N 000000 P 150963
32
BUSHING , Replaced By: A1242920050
32
BUSHING BRAKE PEDAL
35
PAD BRAKE
38
SPRING RETAINER TOP
41
SPRING CLUTCH PEDAL RESET
44
SPRING RETAINER SPRING TO PUSH ROD
47
INSULATOR ROD TO CLUTCH PEDAL
50
INSULATOR BOTTOM
53
REPAIR KIT
56
SPACER TUBE BRAKE PEDAL TO PIVOT PIN
59
SPRING BRAKE PEDAL RESET
62
LOCK AT WATER EXPANSION TANK
65
WASHER PEDALS TO PIVOT PINS
68
PIN BRAKE PEDAL TO BRAKE BOOSTER
71
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
