Mercedes A6718300126 - ZB LUFTDUESENVERBIND

O 345,EURO 3 671.030

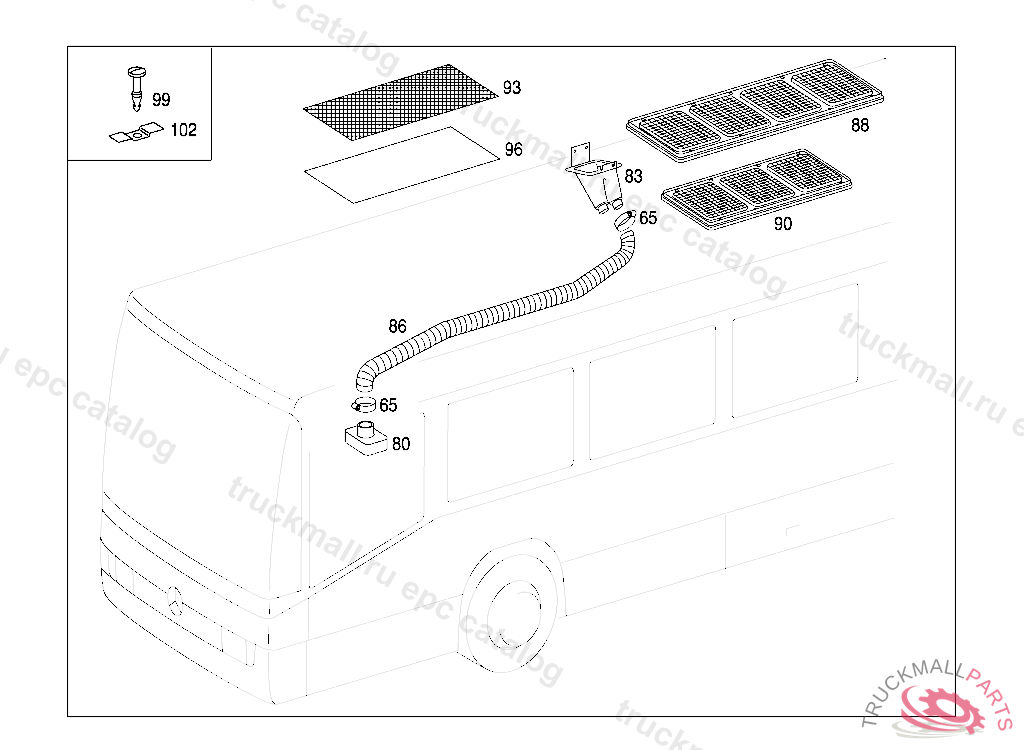

83 HEATING AND VENTILATION - 180 AIR GUIDE IL. 2

Поз.
Артикул
Описание
65
N000000000676
CLAMP , Replaced By: A0059970690
65
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
65
N000000000673
CLAMP HOSE TO RETARDER 60-80X13 MM
65
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
80
A6718310126
80
A0008320227
CONNECTOR
83
A6718300126
83
A6718300026
86
A0008312588
HOSE AIR INTAKE,HEATER 64.8 X 2.4 X 1400 MM, TO BE ADAPTED DURING ASSEMBLY
86
A6298310088
HOSE37MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
A6718321523
88
A6718300265
90
A0008352918
90
A6718300165
90
A0008352818
93
A0008352718
96
A0018355347
96
A0028350247
99
A0008310578
FASTENER
102
A0008354434
SPRING CLIPTO A 628 830 65 61
999
A6718300105
999
A6718300305
999
A6718310198
999
A6719970052
