Mercedes A6138220430 - WARNSUMMER

O 345,EURO 3 671.030

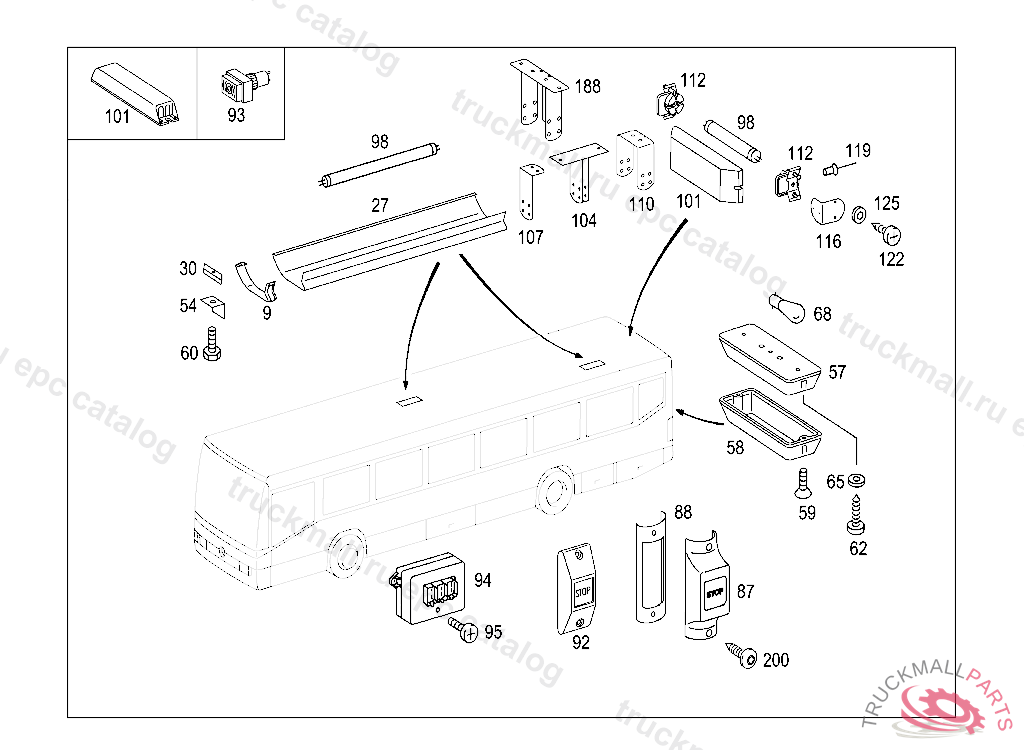

82 ELECTRICAL SYSTEM - 480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1

Поз.
Артикул
Описание
9
A6718250310
9
A6716955595
27
A6716956195
27
A6716956295
27
A6716955795
27
A6716950330
27
A6716956095
30
A6138250072
NUT CONSOLE MOUNTING
54
A6716950012
57
A6138200901
INTERIOR LAMP
57
HXB3738201601
58
HXB3738250010
59
N007988004106
SCREW
60
N910105006023
SCREW LEVER TO ENGINE CONTROL SHAFT
62
N007981003239
SHEET METAL SCREW , UP TO CHASSIS: 114.010 016428 114.015 013598 115.010 014491 115.015 011507 115.110 031296 115.115 013974
62
N000000000449
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
65
N000000003748
WASHER DIA., 3,2MM
68
N072601024702
BULB , Replaced By: N072601024704
87
A6718250506
87
A6718250606
87
A6718250206
87
A6718250006
87
A0028213251
SWITCH STOP SIGNAL
88
A6718250196
92
A6718250306
92
A6718250106
SWITCH REQUEST FOR STOP
92
A6718250406
93
A6138220430
BUZZER ACOUSTIC, DRIVER SEAT BELT, AS OF PRODUCTION BREAKPOINT DATE 22.11.04
93
A6718220030
98
HXB3738250595
98
HXB3738250495
101
A6718250695
104
A6718201214
107
A6718250114
110
A6718250214
112
A6718250282
112
A0008203065
200
N000000000475
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
999
A6718250482
999
A6718250382
999
A6718211201
