Mercedes A6718321323 - HOSE

O 345 G,EURO 3 671.332

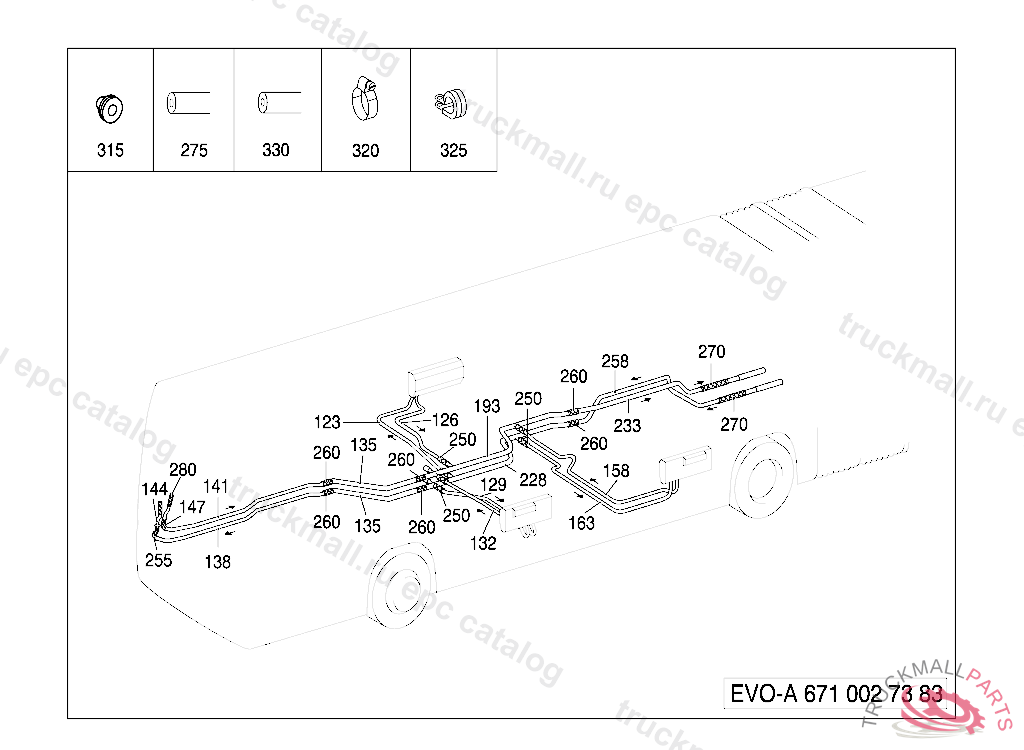

83 HEATING AND VENTILATION - 437 HEATING WATER LINES, ARTIC. VEHICLE IL. 2

Поз.
Артикул
Описание
135
A6718325719
141
A6718303016
144
A6718325319
147
A6718325419
193
A6718306716
228
A6718306616
233
A6718327322
250
N900271018017
HOSE18X27X100MM
255
A3018327823
HOSE22 X 31 MM90°
258
A6718327222
260
N900271038019
HOSE LINE CONNECTION 38X50X100 MM
270
A6718321323
275
A3028320496
GROMMET HEATER UNIT TO BRACKET
280
N900271022023
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
280
N900271022000
HOSE
315
A1869970781
GROMMET 34 MM
315
A3219970281
GROMMET , Replaced By: A3359970081
320
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
320
N000000003385
CLAMP20 - 32 MM
325
N916016022203
CLAMP DELIVERY AND SUCTION LINES TO FRAME
325
N916016038201
CLAMP , Replaced By: A3829950701
325
N916016018201
CLAMP BRAKE HOSE BRACKET
325
N916016028202
CLAMP CABLE HARNESS MOUNTING
330
A6719870323
330
A6719870223
INSULATING HOSE38X18, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
330
A0008324823
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
