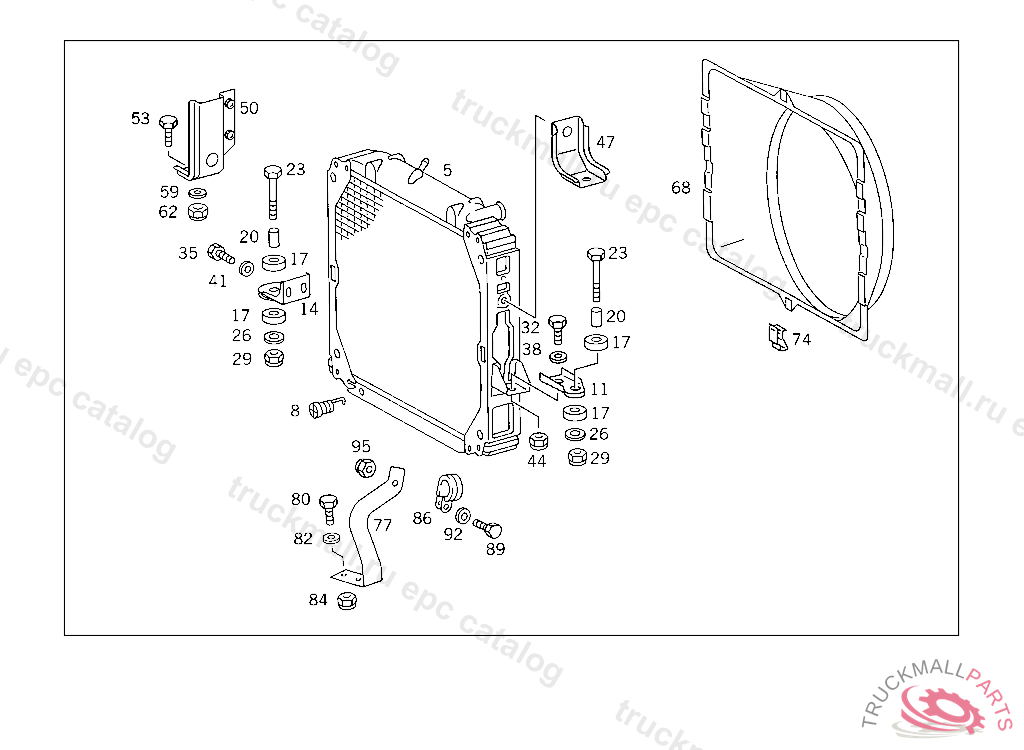

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
SCREW BRACKET TO TRANSMISSION
32
SCREW , Replaced By: N308676012038
35
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
38
WASHER COVER PLATE TO FRAME
41
WASHER RADIATOR TO RUBBER MOUNTING
41
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
47
BRACKET RADIATOR,LEFT TOP
50
BRACKET RIGHT ANTINOISE CAPSULE
53
SCREW EXHAUST PIPE TO BRACKET
59
WASHER RADIATOR TO RUBBER MOUNTING
59
WASHER , Replaced By: N000125010532
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
68
AIR BAFFLE RADIATOR
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
77
BRACKET OIL DIPSTICK
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
82
WASHER EXHAUST MUFFLER TO STRAP
82
WASHER , Replaced By: N000125008443
84
NUT , Replaced By: N913004008001
84
NUT STRAP TO BRACKET
84
NUT , Replaced By: N910113010000
86
CLAMP OIL DIPSTICK TO RADIATOR
86
CLAMP OIL DIPSTICK TO BRACKET
89
SCREW PIPE CLAMP
89
SCREW , Replaced By: N304017008021
92
WASHER EXHAUST MUFFLER TO STRAP
92
WASHER , Replaced By: N000125008443
95
NUT , Replaced By: N913004008001
