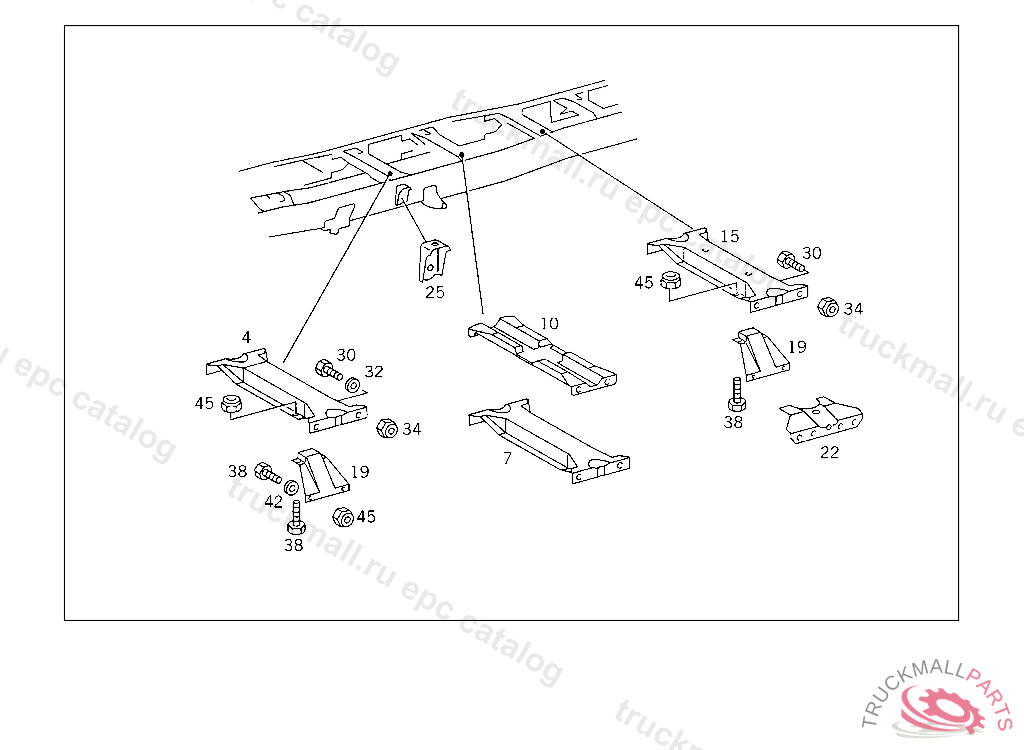

Поз.
Артикул
Описание
4
CROSS MEMBER , Replaced By: A6753100137
4
CROSS MEMBER SPARE WHEEL CARRIER, TO BE ADAPTED DURING ASSEMBLY
7
CROSS MEMBER , Replaced By: A3183120217
7
CROSS MEMBERNO.4A
10
CROSS MEMBER TOP NO.3A
15
CROSS MEMBERNO.3B
15
CROSS MEMBERNO.3B
15
CROSS MEMBERNO.3B
15
CROSS MEMBERNO.4A
15
CROSS MEMBERNO.5A
15
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
15
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
15
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
19
STRUT LEFT AND RIGHT
19
ANGLE CROSS MEMBER TO FRAME
22
REINFORCEMENT CROSS MEMBER
22
REINFORCEMENT LEFT AND RIGHT
22
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
25
CONSOLE , Replaced By: A6733171101
25
CONSOLE BODY MOUNTING
30
SCREW BRACKET TO FRAME M 12X35
30
SCREW MOUNTING TO CONSOLE M 14X35
30
SCREW , Replaced By: N308676014008
32
WASHER
34
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
34
NUT , Replaced By: N910113012003
38
SCREW REAR CROSS MEMBER TO FRAME M 14X40
38
SCREW BRACKET TO FRAME SIDE MEMBER
38
SCREW BRACKET TO FRAME SIDE MEMBER
38
SCREW , Replaced By: N304017010036
42
WASHER , Replaced By: N000125015019
42
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
42
WASHER RADIATOR TO RUBBER MOUNTING
42
WASHER RADIATOR TO RUBBER MOUNTING
45
NUT STEERING SUPPORT TO FRAME
45
NUT , Replaced By: N910113014000
45
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
45
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
