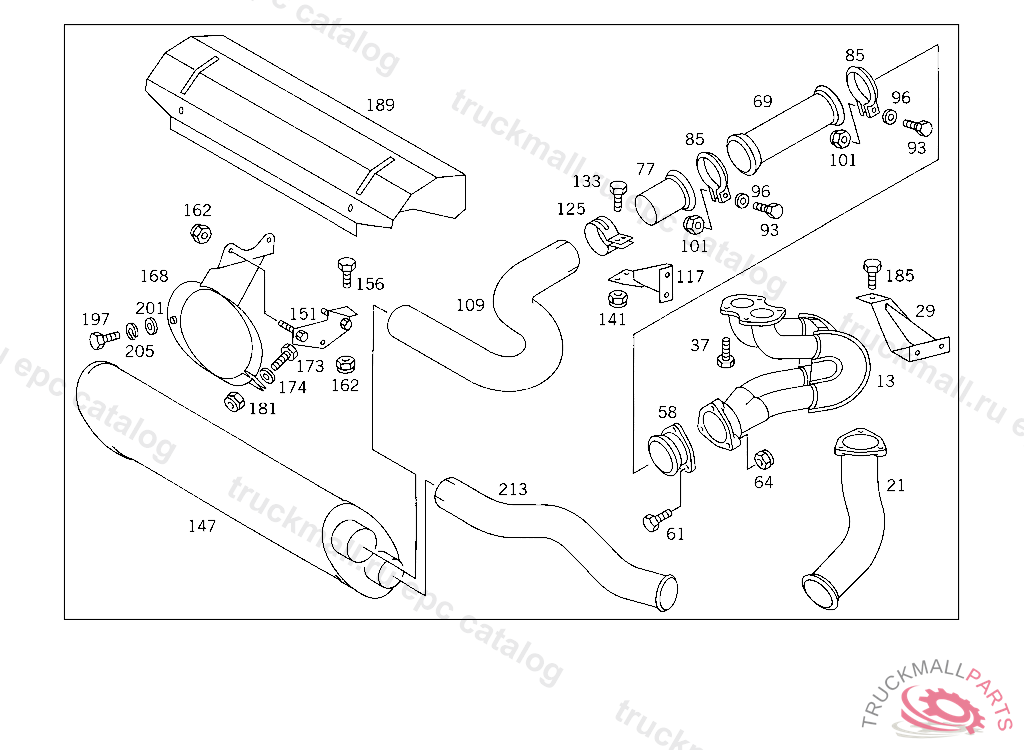

Поз.
Артикул
Описание
13
EXHAUST PIPE FRONT,5 536226
13
EXHAUST PIPE FRONT,5 536226
13
EXHAUST PIPE FRONT,5 536225
21
EXHAUST PIPE , Replaced By: A6764905819
21
EXHAUST PIPE FRONT,K 049384
21
EXHAUST PIPE FRONT,K 049384
21
EXHAUST PIPE FRONT,5 536226
21
EXHAUST PIPE FRONT,K 049384
29
BRACKET EXHAUST PIPE TO EXHAUST MANIFOLD,5 536225
29
BRACKET EXHAUST PIPE
29
BRACKET EXHAUST PIPE TO EXHAUST MANIFOLD,5 536225
29
BRACKET EXHAUST PIPE
29
BRACKET EXHAUST PIPE
37
SCREW RADIATOR M 10X45
58
EXHAUST PIPE FRONT CENTRAL,5 536225
58
EXHAUST PIPE FRONT CENTRAL,5 536226
61
SCREW , Replaced By: N308676012026
61
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
61
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
61
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, REAR
64
NUT SUPPORT TO SIDE MEMBER
69
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
69
FLEXIBLE METAL TUBE LEFT EXHAUST PIPE
69
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
77
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
77
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
85
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
85
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
85
CLAMP EXHAUST PIPE TO MUFFLER
93
SCREW , Replaced By: N304017008018
93
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
93
SCREW SUPPORT TO FENDER
93
SCREW SUPPORT TO FENDER
93
SCREW BRACKET TO 3/2-WAY VALVE
96
WASHER , Replaced By: N000125008443
96
WASHER EXHAUST MUFFLER TO STRAP
101
NUT BRACKET TO BRACKET
101
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
101
NUT BRACKET TO BRACKET
101
NUT , Replaced By: N913004008001
109
FRONT EXHAUST PIPE FRONT,REAR PART,5 536226
109
EXHAUST PIPE FRONT,REAR PART,5 536225
109
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 426245, Replaced By: A6744903219
109
EXHAUST PIPE FRONT,REAR PART
109
EXHAUST PIPE FRONT,REAR PART,5 536225
117
BRACKET EXHAUST LINE FLEXIBLE METAL TUBE
117
BRACKET , Replaced By: A6754900140
117
BRACKET EXHAUST PIPE
117
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 812573 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 936552, Replaced By: A6794900240
117
BRACKET , EXHAUST STOCK OF OLD PARTS FROM IDENT NO.5 563226 UP TO IDENT NO.5 599128, Replaced By: A6794910441, +002N000931010282, +002N007349010003
117
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 426245, Replaced By: A6744903240
117
BRACKET EXHAUST PIPE
117
BRACKET EXHAUST PIPE
117
BRACKET EXHAUST PIPE
125
CLAMP REAR EXHAUST PIPE TO BRACKET
125
CLAMP BRACKET TO EXHAUST PIPE
125
CLAMP AT CROSS MEMBER
125
CLAMP AT CROSS MEMBER
133
SCREW BRACKET TO CROSS CONNECTION STRUT
133
SCREW , Replaced By: N304017008034
133
SCREW BRACKET TO SIDE MEMBER
133
SCREW EXHAUST PIPE TO SIDE MEMBER
133
SCREW BRACKET TO SIDE MEMBER
133
SCREW , Replaced By: N304017010002
141
NUT STRAP TO BRACKET
141
NUT , Replaced By: N910113010000
141
NUT , Replaced By: N913004008001
141
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
147
EXHAUST MUFFLER
147
EXHAUST MUFFLER
147
EXHAUST MUFFLER
147
EXHAUST MUFFLER
147
EXHAUST MUFFLER , NOT USED
147
EXHAUST MUFFLER , Replaced By: A6764900501
147
EXHAUST MUFFLER , NOT USED
151
BRACKET LEFT
151
BRACKET RIGHT
156
SCREW HAND PUMP TO BRACKET
156
SCREW EXHAUST PIPE TO SIDE MEMBER
156
SCREW BRACKET TO SIDE MEMBER
156
SCREW EXHAUST PIPE TO SIDE MEMBER
156
SCREW , Replaced By: N910105010011
156
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
162
NUT , Replaced By: N910113010000
162
NUT STRAP TO BRACKET
162
NUT , Replaced By: N913023010002
162
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
162
NUT , Replaced By: N910113014000
162
NUT STEERING SUPPORT TO FRAME
162
NUT EXHAUST PIPE TO SIDE MEMBER
168
BRACKET LEFT,5 561987
168
BRACKET RIGHT
168
BRACKET LEFT
168
BRACKET RIGHT
168
BRACKET LEFT,5 561986
168
BRACKET LEFT,5 561987
168
BRACKET RIGHT,5 561986
168
BRACKET RIGHT
173
SCREW END PIECE TO EXHAUST PIPE M 10X25
173
SCREW , Replaced By: N304017008021
173
SCREW PIPE CLAMP
174
WASHER , Replaced By: N007349008007
174
WASHER
181
NUT , Replaced By: N910113010000
181
NUT STRAP TO BRACKET
185
SCREW BRACKET TO FRAME SIDE MEMBER
185
SCREW BRACKET TO SIDE MEMBER
189
PROTECTIVE PLATE (HEAT SHIELD)
197
SCREW , Replaced By: A0029904212
197
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
197
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
201
WASHER , Replaced By: N000125008443
201
WASHER EXHAUST MUFFLER TO STRAP
205
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
213
REAR EXHAUST PIPE TAIL PIPE
213
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE (TAIL PIPE),5 7435535 803730K 079962
999
REAR EXHAUST PIPE ,5 7435535 803730, Replaced By: A6764928004
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE ,K 115819
999
EXHAUST MUFFLER
999
EXHAUST PIPE RESONATOR
999
EXHAUST PIPE
999
CLAMP RESONATOR
999
RESONATOR
999
EXHAUST PIPE RESONATOR
999
EXHAUST PIPE RESONATOR,K 049383
999
REAR EXHAUST PIPE (TAIL PIPE),K 079963
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW , Replaced By: N304017016011
999
SCREW LICENSE PLATE TO BRACKET
999
SCREWM 16X25
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE (TAIL PIPE),5 337343
999
REAR EXHAUST PIPE (TAIL PIPE),5 337343
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER , Replaced By: A6764900201
999
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 3373435 528482
999
BRACKET RESONATOR
999
EXHAUST PIPE FRONT, TO BE ADAPTED DURING ASSEMBLY
999
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,K 049384
999
EXHAUST PIPE FRONT,K 049384
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET FRONT EXHAUST PIPE,5 337342
999
PROTECTIVE PLATE ,5 379080
999
BRACKET FRONT EXHAUST PIPE,5 3373435 4266755 906888K 013592
999
BRACKET FRONT EXHAUST PIPE TO BRACKET
999
BRACKET ,5 379080
999
BRACKET ON AIR CLEANER BRACKET
999
BRACKET BRACKET TO FILTER BRACKET
999
BRACKET FLYWHEEL HOUSING
999
REAR EXHAUST PIPE ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764926004
999
REAR EXHAUST PIPE (TAIL PIPE),5 398761
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE REAR PART,5 337343
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET ON AIR CLEANER BRACKET
999
BRACKET TAIL PIPE,FRONT
999
REAR EXHAUST PIPE (TAIL PIPE),5 743553
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
999
BRACKET EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER,5 478324
999
BRACKET , Replaced By: A3524920141
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A6744914541
999
BRACKET REAR EXHAUST PIPE
999
BRACKET TAIL PIPE TO BRACKET
999
BRACKET , Replaced By: A3524920441
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 337343
999
BRACKET ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6744913741, +001A6744913541, +002N000933010129, +002N007349010003, +002N913004010008
999
BRACKET ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6744913741, +001A6744903840, +002N000933010145, +002N007349010003, +002N913004010008
999
BRACKET ,5 337343 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6744913641, +001A6744913541, +002N000933010145, +002N007349010003, +002N913004010008
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640
999
BRACKET , Replaced By: A6744902840
999
BRACKET EXHAUST MUFFLER,RIGHT
999
BRACKET HEAT SHIELD
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER
999
PROTECTIVE PLATE
999
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
999
WASHER , Replaced By: A6739900940
999
WASHER , Replaced By: N006902011100
