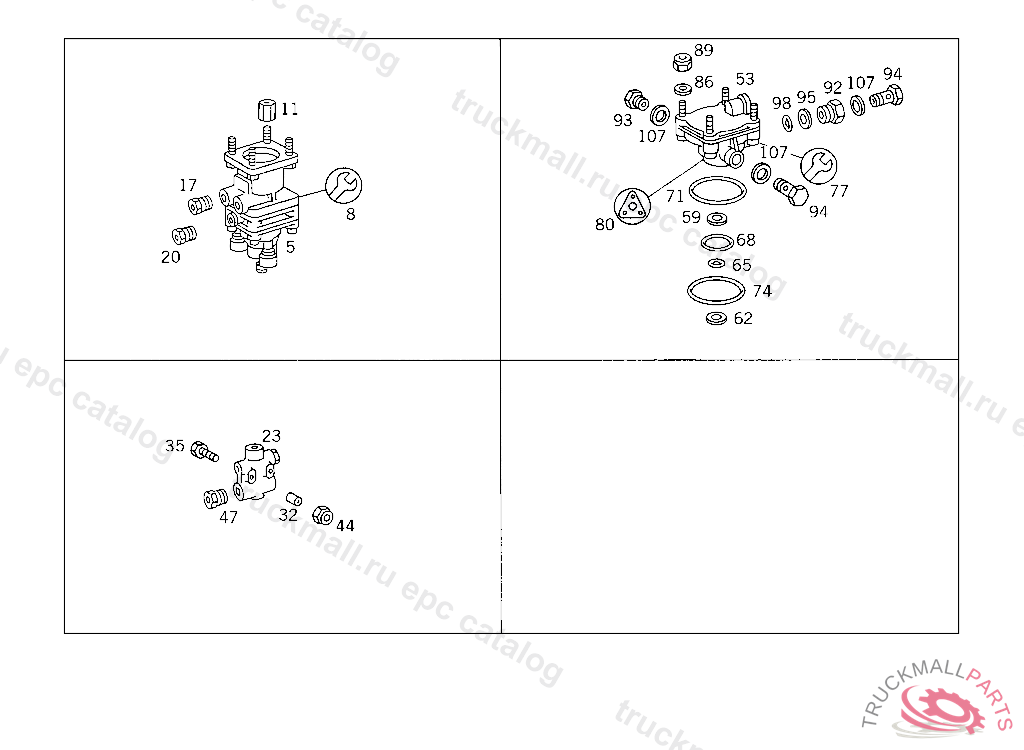

Поз.
Артикул
Описание
5
BRAKE VALVEKNORR
5
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVEWABCO
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
8
REPAIR KITWABCO
8
REPAIR KIT , Replaced By: A0004308306
11
NUT , Replaced By: N913004008004
11
NUT , Replaced By: N913004008001
17
SCREW. UNION SCREW LINE CONNECTION
23
DISTRIBUTOR LESS CHECK VALVE
32
GUIDE BUSHING TWO-WAY VALVE TO FRAME
32
SPACER TUBE , Replaced By: A3094310249
32
GUIDE BUSHING TWO-WAY VALVE TO FRAME
35
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
44
NUT , Replaced By: N913004008001
47
SCREW. UNION SCREW LINE CONNECTION
53
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
53
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
53
VALVE (RELAY VALVE) GRAU
53
VALVE (RELAY VALVE) KNORR
53
VALVE (RELAY VALVE) BOSCH
53
VALVE (RELAY VALVE) WABCO
59
VALVE SEATGRAU
62
GASKET34X2X6 MM,GRAU
65
SEAL RING22.3X2.4 MM,GRAU
68
SEAL RING28X2 MM,GRAU
71
SEAL RINGTO 000 429 28 95,GRAU
74
SEAL RING86X2 MM,GRAU
77
REPAIR KITKNORR
77
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
77
REPAIR KIT , Replaced By: A0004301109
77
REPAIR KITWABCO
80
VALVEBOSCH
80
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
80
REPAIR KIT , Replaced By: A0004201071
86
WASHER EXHAUST MUFFLER TO STRAP
86
WASHER , Replaced By: N000125008443
89
NUT , Replaced By: N913004008001
92
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
93
SCREW. UNION SCREW LINE CONNECTION
93
SCREW. UNION SCREW LINE CONNECTION
93
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
93
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
94
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
98
O-RING CHECK VALVE TO AIR RESERVOIR
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
