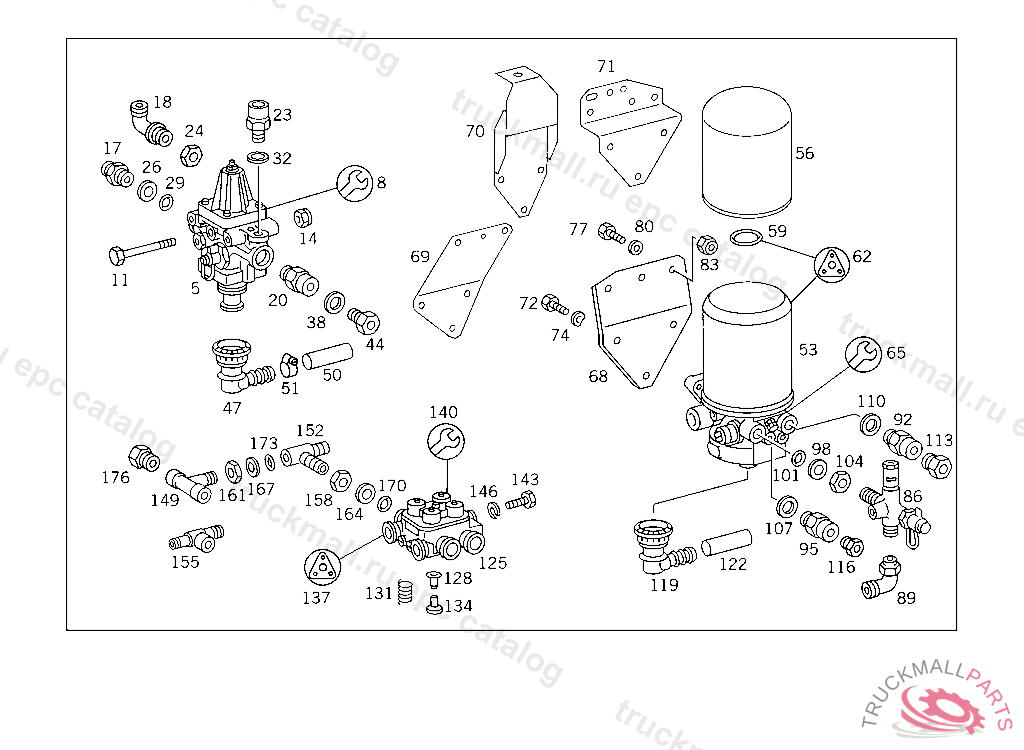

Поз.
Артикул
Описание
5
PRESSURE REGULATORWABCO
5
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT PRESSURE REGULATOR WABCO
8
REPAIR KIT PRESSURE REGULATOR BOSCH,241
11
SCREW REAR AXLE REGULATING SOLENOID VALVE
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
20
FITTING LINE CONNECTION
23
FITTING LINE CONNECTION
26
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
26
THRUST RING CHECK VALVE TO AIR RESERVOIR
29
O-RING CHECK VALVE TO AIR RESERVOIR
32
SEAL RING LINE CONNECTION
38
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
44
SCREW. UNION SCREW LINE CONNECTION
47
CONNECTOR BLEEDING
50
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH,K 126821
53
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
53
AIR DRIERKNORR,5 937586
53
AIR DEHYDRATORBOSCH,5 937586
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
56
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
56
AIR CLEANER COMPLETE TO BOSCH,KNORR
59
SEAL RINGWABCO
62
GASKET KITKNORR
62
GASKET KITWABCO
65
GASKET KIT SEAL RINGS KNORR,5 937586
65
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
65
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
71
BRACKET AIR DEHYDRATOR
72
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
72
SCREW , Replaced By: N308676012012
74
SPRING WASHER CAB FLOOR
74
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
77
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
77
SCREW , Replaced By: N308676012026
80
WASHER BRACKET TO FRAME
83
NUT SUPPORT TO SIDE MEMBER
86
FITTING AIR DEHYDRATOR
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
NUT CHECK VALVE TO AIR RESERVOIR
113
SCREW. UNION SCREW LINE CONNECTION
116
SCREW. UNION SCREW , Replaced By: A0009973734
116
SCREW. UNION SCREW LINE CONNECTION
119
CONNECTOR BLEEDING
119
CONNECTOR 90 DEG. OFFSET
122
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
125
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
125
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
137
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
137
REPAIR KIT , Replaced By: A0004304706
140
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
143
SCREW PIPE CLAMP
143
SCREW , Replaced By: N304017008021
176
SCREW. UNION SCREW LINE CONNECTION
