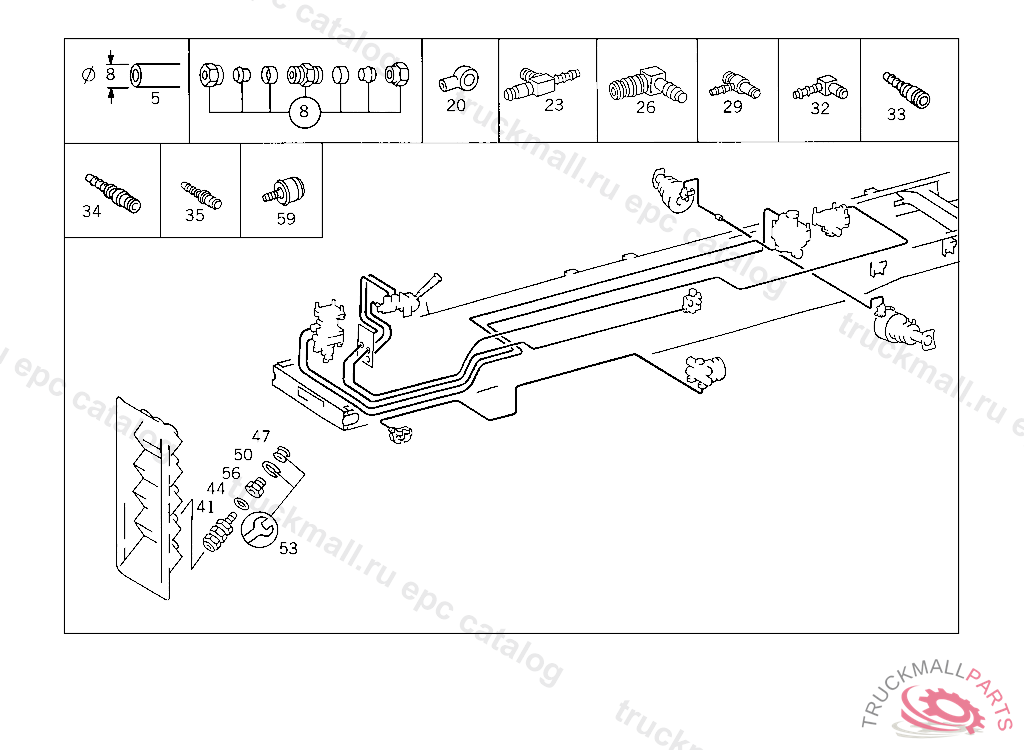

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
20
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
23
T-FITTING BREATHER LINE
26
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
29
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
32
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
32
ELBOW FITTING , Replaced By: A0049905371
33
CONNECTOR HOSE WIDTH, / I.D., 6 MM
34
CONNECTOR DISTRIBUTOR TO CAB
35
CONNECTOR HOSE WIDTH, 6 MM,TO M16
35
CONNECTOR , Replaced By: A0029905478
41
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
44
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
47
LOCK RING LINE CONNECTION
47
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
47
SEAL RING , Replaced By: A0009940747
50
LOCK , Replaced By: A0009945448
50
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
50
LOCK LINE CONNECTION
53
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
53
REPAIR KIT , Replaced By: A0309971748
53
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
56
SCREW. UNION SCREW LINE CONNECTION
59
PLUG BLEEDING,D 013038
