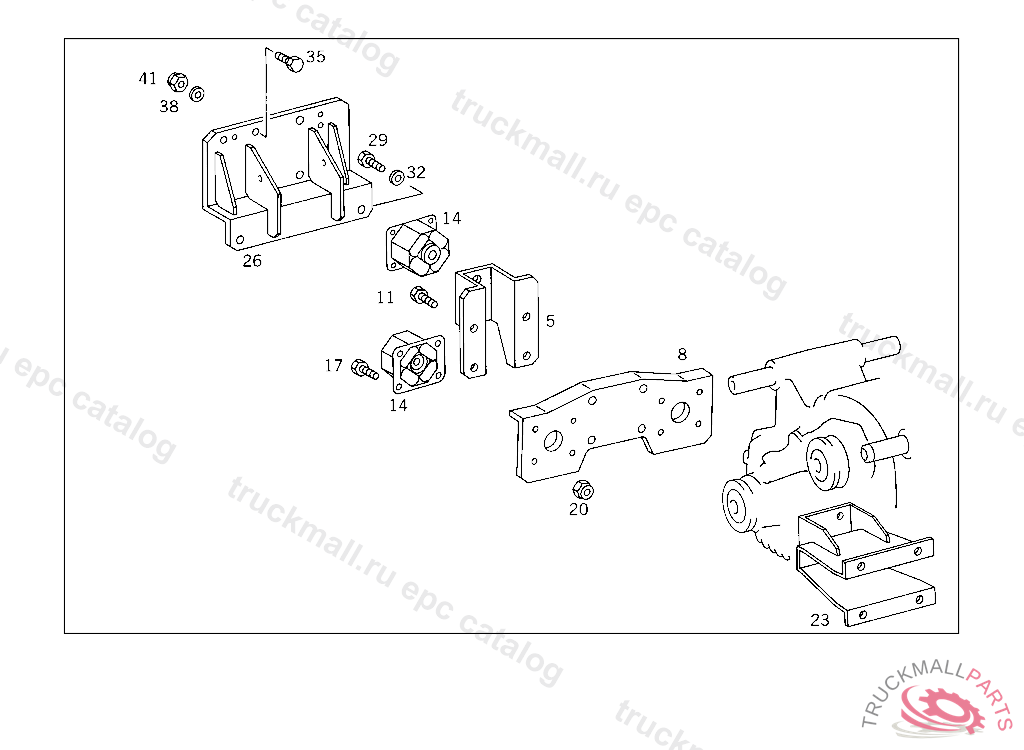

Поз.
Артикул
Описание
5
BRACKET TRANSFER CASE SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
5
BRACKET , Replaced By: A6742851340
8
PLATE LEFT BRACKET TO FRAME
11
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
14
RUBBER MOUNTING TRANSFER CASE SUSPENSION,LEFT
17
SCREW END PIECE TO EXHAUST PIPE M 10X25
20
NUT STRAP TO BRACKET
23
SUPPORT TRANSFER CASE TO FRAME,LEFT
26
SUPPORT TRANSFER CASE TO FRAME,RIGHT
29
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
35
SCREW SUPPORT TO SIDE MEMBER
35
SCREW SUPPORT TO FRAME M 14X32,5 129244
38
WASHER BRACKET TO FRAME
38
WASHER HELPER SPRING BRACKET TO SIDE MEMBER,5 201989 UP TO IDENT NO. 5 319597,FROM IDENT NO. SEE STANDARD VERSION
41
NUT BRACKET TO SIDE MEMBER
41
NUT SUPPORT TO SIDE MEMBER
