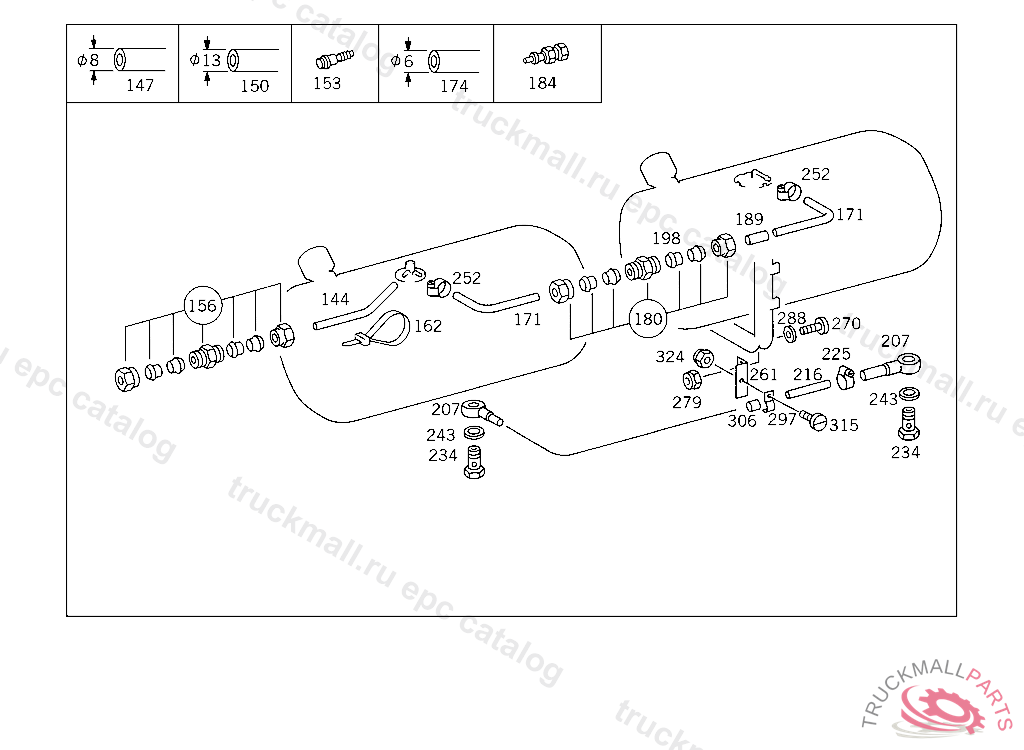

Поз.
Артикул
Описание
144
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
144
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
147
PLASTIC PIPE AERATION, ORDER BY THE METER
150
HOSE FEED LINE AND RETURN LINE 10,5X13 MM, ORDER BY THE METER
153
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
156
FITTING (PARTS KIT),LINE RUPTURE
156
FITTING , Replaced By: A0029905971
162
LOOM TIE LINE MOUNTING 280 MM
171
PLASTIC PIPE RISING PIPE 4X6 MM
171
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
174
PLASTIC PIPE RISING PIPE 4X6 MM
180
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
184
CONNECTOR BREATHER LINE CONNECTION
184
CONNECTOR , Replaced By: A0039908270
189
HOSE LEAK LINE, ORDER BY THE METER
198
SLEEVE LEAK LINE
207
LINE WITH BANJO UNION
216
HOSE LEAK LINE
225
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
225
CLAMP , Replaced By: N916017011001
234
HOLLOW SCREW FUEL LINE TO FEED PUMP
234
HOLLOW SCREW , Replaced By: N915036010108
243
SEAL RING FUEL LINE TO FEED PUMP
252
CLAMP LINE MOUNTING
261
BRACKET HEATING PIPE
261
BRACKET , Replaced By: A6764760136
261
BRACKET FUEL LINE
270
SCREW HOOK TO BRACKET
270
SCREW , Replaced By: N007985005175
279
NUT TWO-WAY VALVE TO BRACKET
288
WASHER BOOT TO CAB FLOOR
288
WASHER , Replaced By: N000433005304
297
CLAMP FUEL LINE TO BRACKET
297
CLAMP , Replaced By: A1109950401
306
RUBBER PAD FUEL LINE TO BRACKET
315
SCREW HOOK TO BRACKET
315
SCREW , Replaced By: N007985005175
324
NUT TWO-WAY VALVE TO BRACKET
999
FUEL STRAINER FUEL TANK,K 169122
999
EDGE GUARD SECTION
999
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
999
VALVE BREATHER LINE,K 169122
999
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
PAD EXPANSION TANK TO SUPPORT
999
FUEL TANK105L
999
STRAP , Replaced By: A6734300040
999
SUPPORT FRONT AND REAR
999
SENDER UNIT FUEL GAUGE,5 218304
999
SENDER UNIT FUEL GAUGE,5 218304K 169122
