Mercedes A0019901667 - Штуцер Mercedes-Benz

1117 L 676.213

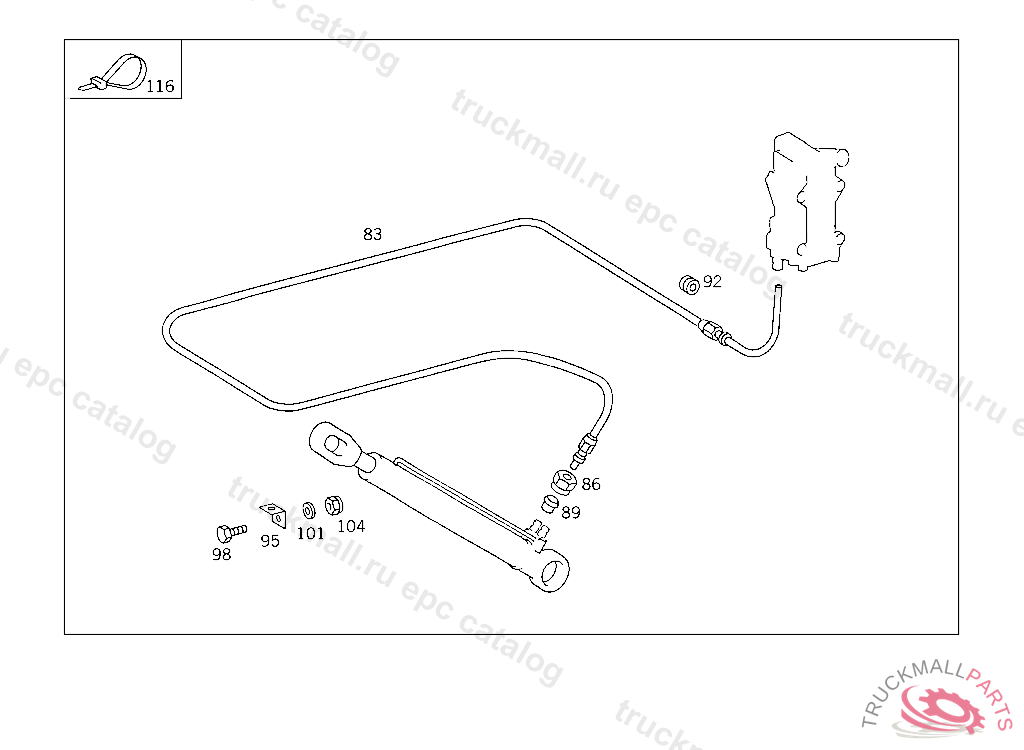

31 FRAME - 001 CAB REAR SUSPENSION,WITH RETAINING CABLE IL.3

Поз.
Артикул
Описание
83
A6745530182
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER 2820MM,5 126157 10/50 UP TO IDENT NO. 5 202493 20/60 UP TO IDENT NO. 5 202933
86
N915017006100
UNION NUT
89
N003861006007
GLAND , Replaced By: A0019901667
89
A0019901667
SEAL CONE
92
A3129970581
GROMMET BATTERY CABLE THRU PARTITION PANEL
95
A3874292940
BRACKET , Replaced By: A3852670040
95
A3852670040
BRACKET SENSOR CABLE TO FRONT AXLE
98
N308676012012
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
98
N000961012052
SCREW , Replaced By: N308676012012
101
A6739901040
WASHER BRACKET TO FRAME
104
N910113012002
NUT SUPPORT TO SIDE MEMBER
116
A0019978490
LOOM TIE LINE MOUNTING
