Mercedes A6739900112 - Болт

1117 676.319

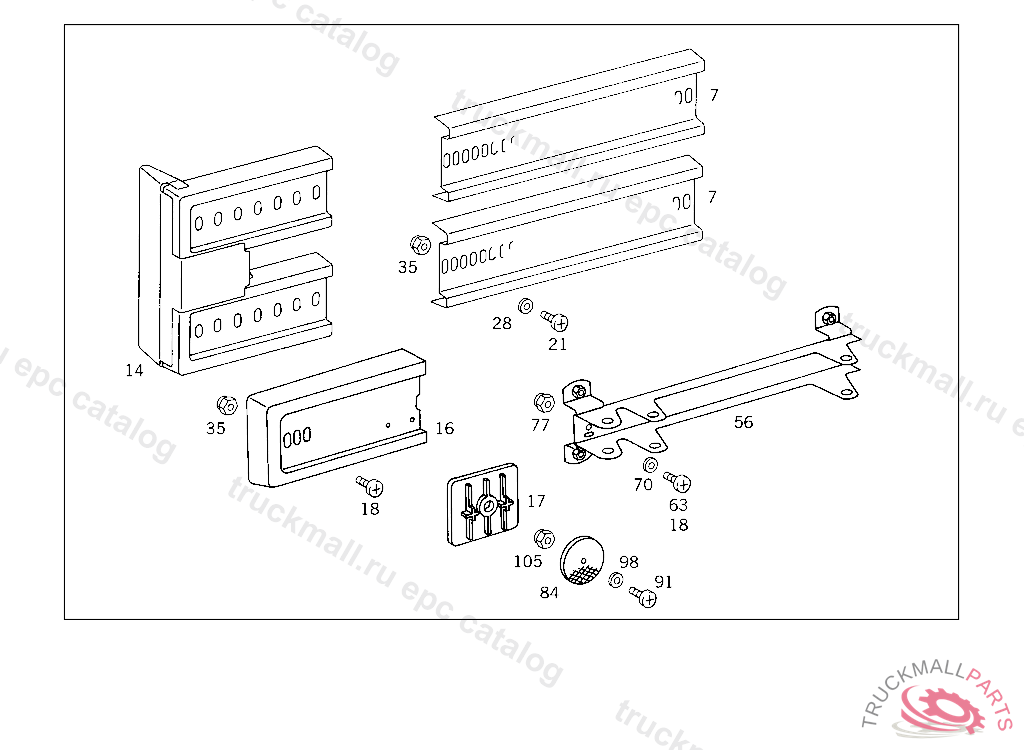

52 SHEET METAL,AIR INTAKE - 001 SIDE PROTECTION RAIL

Поз.
Артикул
Описание
7
A6525251182
PROTECTIVE RAIL UNDERRUN PROTECTION,LEFT 4590 MM, TO BE ADAPTED DURING ASSEMBLY
14
A6735200969
BUMPERETTE
14
A6735200569
BUMPERETTE
14
A6735200769
BUMPERETTE RAIL
14
A6735200669
BUMPERETTE ,5 942981
16
A6735250638
CAP LEFT AND RIGHT,FRONT AND REAR
16
A6735250938
CAP LEFT AND RIGHT,FRONT AND REAR
16
A6735251238
CAP FRONT,5 942982
17
A6735250036
STOP ,K 015919
18
A6739900112
SCREW STOP TO SUPPORT
28
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
28
N000125008418
WASHER , Replaced By: N000125008443
35
N913017008000
NUT COVERING TO RAIL
56
A6735202133
SUPPORT ,K 015918
56
A6735202233
SUPPORT ,K 015919
63
A6739900212
SCREW BRACKET TO CLAMP,K 015918
70
N000125008418
WASHER , Replaced By: N000125008443
70
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
