Главная
›
Mercedes
›
BUS
›
1320 LS
›
677.256
›
52 SHEET METAL,AIR INTAKE
›
001 TAIL LAMP BRACKET
Mercedes A0009906950 - Гайка
1320 LS 677.256

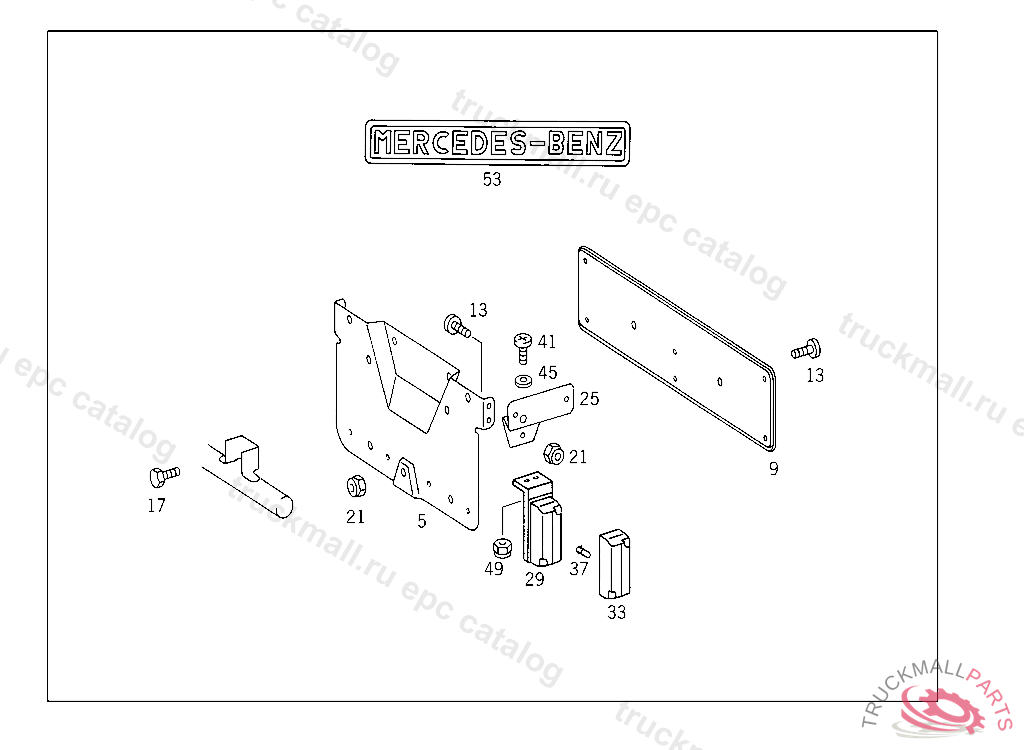

52 SHEET METAL,AIR INTAKE - 001 TAIL LAMP BRACKET
Поз.
Артикул
Описание
5
A6735208741
BRACKET TO MOUNT TAIL LAMPS
9
A6735256039
BRACKET LICENSE PLATE
13
N007985006193
SCREW , Replaced By: N000000001146
13
N000000001146
SCREW CLAMP MOUNTING M 6X16
17
N000933008212
SCREW , Replaced By: N304017008016
17
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
21
N913004006002
NUT , Replaced By: N913004006001
21
N913004006001
NUT PUMP TO BRACKET
25
A6735441838
BRACKET AT TAIL LAMP BRACKET
29
A0005442311
SIDE MARKER LAMP
33
A0025440090
LENS
37
N072601024900
BULB24 V
41
N007985006172
SCREW , Replaced By: N007985006581
41
N007985006581
SCREW CLAMP TO BRACKET
45
A0009841755
WASHER CLEARANCE LAMP ON BRACKET
49
N913004006002
NUT , Replaced By: N913004006001
49
N913004006001
NUT PUMP TO BRACKET
53
A3098170128
NAME PLATE
999
A0009906950
NUT PARTICLE FILTER M14
999
A0009909604
SCREW RELAY TO BRACKET
999
A6755440038
BRACKET
