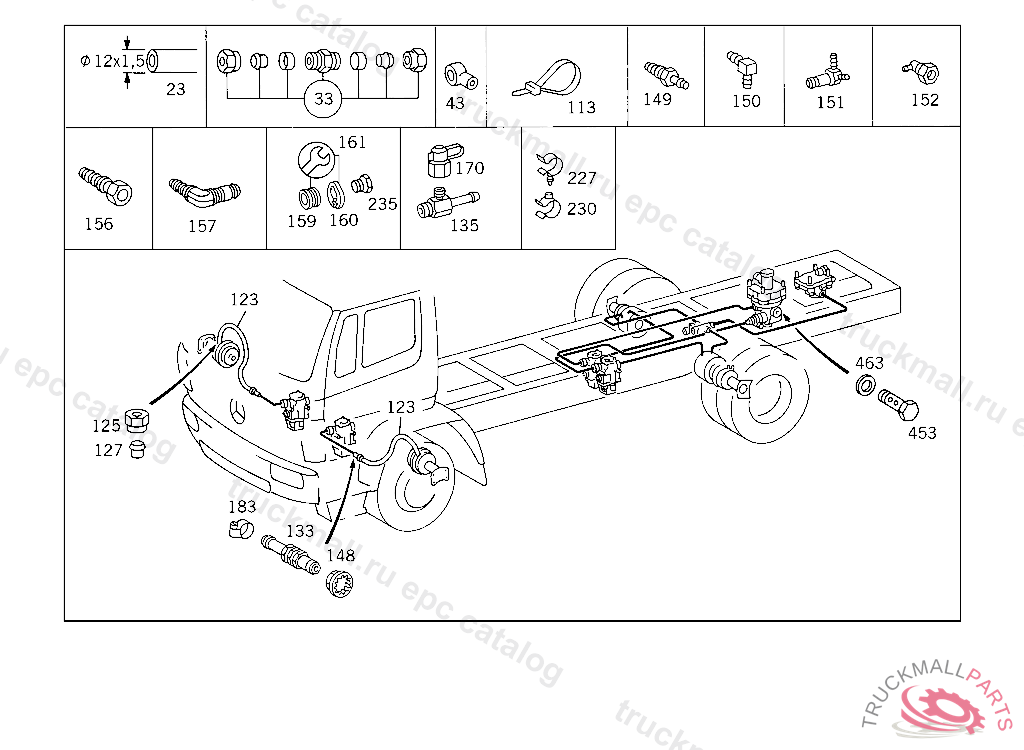

Поз.
Артикул
Описание
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
23
HOSE , Replaced By: A0009872827
33
FITTING , Replaced By: A0029906171
33
FITTING (PARTS KIT),LINE RUPTURE
43
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
113
LOOM TIE LINE MOUNTING
113
LOOM TIE LINE MOUNTING 280 MM
123
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
125
UNION NUT LINE CONNECTION, Replaced By: N000000006239
125
UNION NUT LINE CONNECTION
127
GLAND , Replaced By: A0019901967
127
SEAL CONE LINE CONNECTION
133
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
133
CONNECTOR ,5 288358, Replaced By: A0019901378, +001A6734210073
135
CONNECTOR FITTING WITH PROTECTION AGAINST TORSION TO M 22
148
LOCK REAR AXLE BRAKE HOSE,K 181360
149
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
150
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
151
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
152
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
156
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
157
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
159
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
160
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
161
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
170
TEST CONNECTION
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
183
CLAMP HOSE TO FITTING AND TO OIL TANK
183
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
227
CLAMP BRAKE HOSE
230
CLAMP BRAKE HOSE
235
SCREW. UNION SCREW LINE CONNECTION
453
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
463
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONNECTOR 75 DEGREES
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
VALVE PART
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
SEAL RINGWABCO
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
ELBOW FITTING
999
VALVE
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (SOLENOID VALVE)
999
FITTING 2/2-WAY VALVE,CONNECTION: "20",5 374133
999
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
999
SEAL RINGWABCO
999
SEAL RING , NOT USED
999
SEAL RINGWABCO
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
CONNECTOR DISTRIBUTOR TO CAB
999
LOCK VALVE TO BRACKET
999
LOCK LEFT
999
LOCK RIGHT
999
BRACKET LEFT
999
BRACKET RIGHT
999
SCREW VALVE TO CAB M 8X85
999
SEAL RING LINE CONNECTION
999
NUT COMBINATION CYLINDER,CONNECTION: "12"
999
HOLLOW SCREW HEATING CONNECTION
