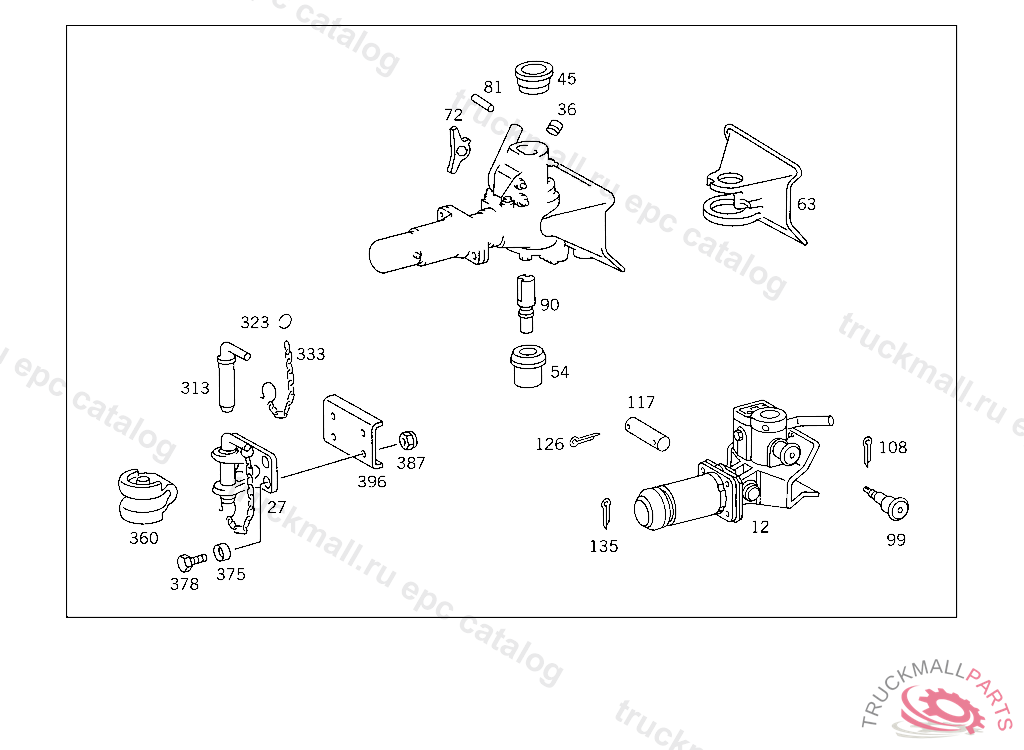

Поз.
Артикул
Описание
12
TRAILER COUPLING (MOUTH-TYPE COUPLING) ROCKINGER TYP 226 G210
27
TRAILER COUPLING (TOW BAR COUPLING) ROCKINGER,TYP SK 7
27
COUPLING (TOW BAR COUPLING) ROCKINGER TYP SK 4
36
SLEEVE
45
BUSHING TOP
54
BUSHING BOTTOM ROCKINGER,TYP 59 U150
63
COUPLING MOUTH
72
FOLLOWER
81
DOWEL PIN
90
COUPLING PIN (TOW BAR COUPLING) ROCKINGER, TO 003 315 42 99
90
COUPLING PINROCKINGER,TYP 59 U150
99
LOCK
108
COTTER PIN4X25 MM
117
PIN
126
COTTER PIN6,3X36 MM
135
COTTER PIN6.3X63 MM
313
PIN
313
PINROCKINGER,TYP SK 7
323
RINGROCKINGER,TYP SK 7
333
CHAINROCKINGER,TYP SK 7
360
COVERING TRAILER COUPLING
375
SPACER TUBE TRAILER COUPLING TO REAR CROSS MEMBER
375
SPACER TUBE , Replaced By: A6458910653
378
SCREW BRACKET TO CAB CONSOLE,K 035197
378
SCREW STEERING SUPPORT TO FRAME M 14X50
387
NUT STRAP TO BRACKET
387
NUT BRACKET TO SIDE MEMBER
387
NUT CONSOLE TO SUPPORT
387
NUT TRAILER COUPLING TO REAR CROSS MEMBER
387
NUT , Replaced By: N913004020003
387
NUT , Replaced By: N910113016001
387
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
387
NUT , Replaced By: N910113014000
387
NUT , Replaced By: N910113014001
387
NUT , Replaced By: N910113010000
387
NUT STEERING SUPPORT TO FRAME
387
NUT TRAILER COUPLING TO REAR CROSS MEMBER
387
NUT COMBINATION CYLINDER TO BEARING BRACKET
387
NUT CROSS MEMBER TO REINFORCEMENT
387
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
387
NUT TRAILER COUPLING TO REAR CROSS MEMBER
396
REINFORCEMENT TOW BAR COUPLING TO CROSS MEMBER
999
COUPLING PIN FOR COUPLING MOUTH
999
LOCKING SPRING TO SECURE COUPLING PIN
999
TRAILER COUPLING (HOOK TYPE COUPLING) TYP RU K4D
999
HANDLEROCKINGER TYP 401 G135,TYP 250 G135
999
PINROCKINGER TYP 401 G135,TYP 250 G135
999
SEALING CORD FOR COUPLING MOUTH
999
REPAIR KIT , Replaced By: A0003100114
999
REPAIR KIT TRAILER COUPLING
999
REPAIR KIT TRAILER COUPLING RINGFEDER,TYP 64 G135
999
REPAIR KIT , Replaced By: A0003100014
999
REPAIR KIT TRAILER COUPLING RINGFEDER TYP 64 G140,64 G150
999
BOOT , TO BE ORDERED DIRECT FROM MANUFACTURER
999
BUSHING BOTTOM ROCKINGER, TO 003 315 42 99
999
BUSHINGRINGFEDER TYP 86 G135 EK
999
BUSHING BOTTOM RINGFEDER TYP 86 G135 EK
999
BUSHING
999
BUSHING
999
LEVERRINGFEDER TYP 86 G135 EK
999
COUPLING PINRINGFEDER TYP 86 G135 EK
999
LEVER , SPECIAL SUPERSTRUCTURES
999
BUFFER , TO BE ORDERED DIRECT FROM MANUFACTURER
999
LEVER , INAPPLICABLE TO SPECIAL SUPERSTRUCTURES
999
NUTRINGFEDER
999
BUFFERRINGFEDER TYP 86 G135 EK
999
SPRING , TO BE ORDERED DIRECT FROM MANUFACTURER
999
LOCKRINGFEDER
999
LOCK , Replaced By: A0003151173
999
SCREW , TO BE ORDERED DIRECT FROM MANUFACTURER
999
CAPRINGFEDER TYP 65 G135
999
SCREW , TO BE ORDERED DIRECT FROM MANUFACTURER
999
NUT
999
PLATERINGFEDER TYP 86 G135 EK
999
CAP
999
SPRINGROCKINGER TYP 260 G140
999
MUFFLER , TO BE ORDERED DIRECT FROM MANUFACTURER
999
REPAIR KITTO 003 315 42 99
999
AUTOMATIC UNIT PARTS KIT ROCKINGER TYP 260
999
AUTOMATIC UNIT , Replaced By: A0003100114
