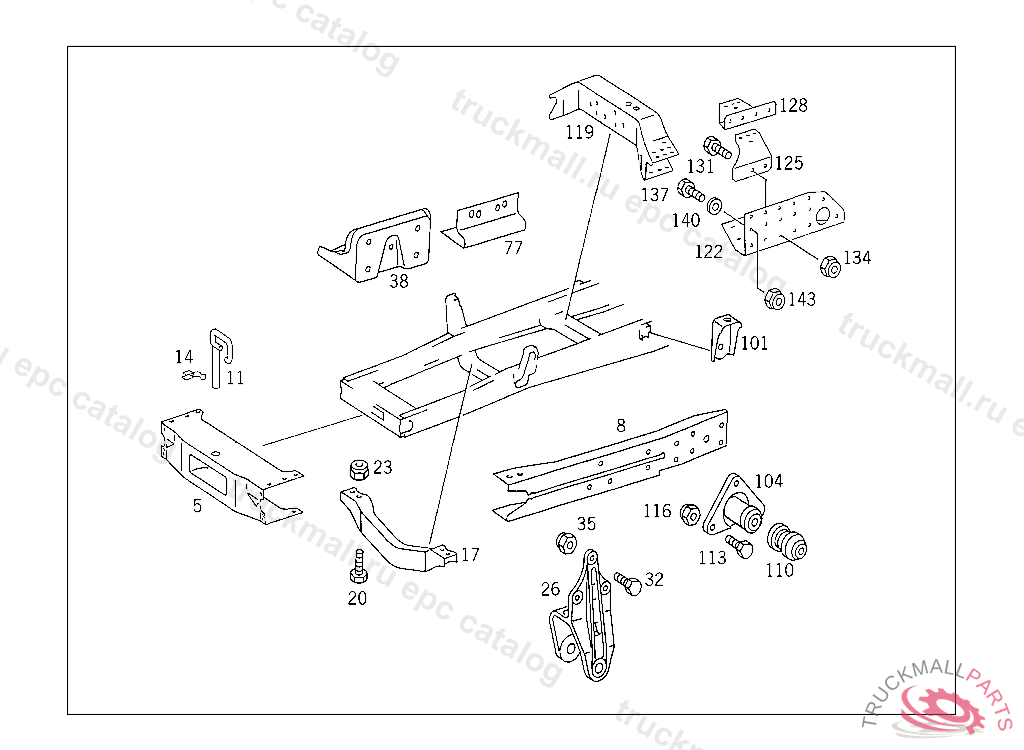

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE , Replaced By: A6783100071
8
GUSSET PLATE , Replaced By: A6783100171
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
20
SCREW CONSOLE TO SIDE MEMBER
23
NUT SUPPORT TO SIDE MEMBER
26
FRONT SPRING BRACKET ,5 358487, Replaced By: A6753220401, +001A6753220450, +001A6753250350, +001N000960016242, +001N913004016004
26
FRONT SPRING BRACKET FRONT SPRING FRONT BRACKET
32
SCREW PLATE TO SIDE MEMBER
32
SCREWM 16X17X24X44
35
NUT STEERING SUPPORT TO FRAME
35
NUT CONSOLE TO SUPPORT
35
NUT , Replaced By: N910113014000
35
NUT , Replaced By: N910113016001
38
SUPPORT ENGINE FRONT MOUNTING
77
ANGLE AXLE STOP
77
ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 545914, Replaced By: A6733110245
101
CONSOLE BODY MOUNTING
104
REAR SUBFRAME FRONT SPRING REAR BRACKET
104
REAR SUBFRAME , Replaced By: A6753200170
110
BUSHING
113
SCREWM 12X13X18X35
116
NUT , Replaced By: N910113012003
116
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
119
CROSS MEMBER TRANSMISSION,5 519079
119
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
122
REINFORCEMENT LEFT
122
REINFORCEMENT RIGHT
122
REINFORCEMENT LEFT
122
REINFORCEMENT RIGHT
125
REINFORCEMENT LEFT
125
REINFORCEMENT RIGHT
125
REINFORCEMENT RIGHT,5 519079
125
REINFORCEMENT LEFT
128
ANGLE , Replaced By: A6733121052
128
ANGLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733121052
128
ANGLE LEFT
131
SCREW CONNECTOR TO REAR SHIFTING ROD
131
SCREW CONSOLE TO SIDE MEMBER
131
SCREW STRUT TO CROSS MEMBER M 10X25
131
SCREW REINFORCEMENTS AND ANGLE TO CROSS MEMBER,5 519079
134
NUT SUPPORT TO SIDE MEMBER
134
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
137
SCREW BRACKET TO FRAME M 12X35
140
WASHER BRACKET TO FRAME
143
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
143
NUT , Replaced By: N910113012003
