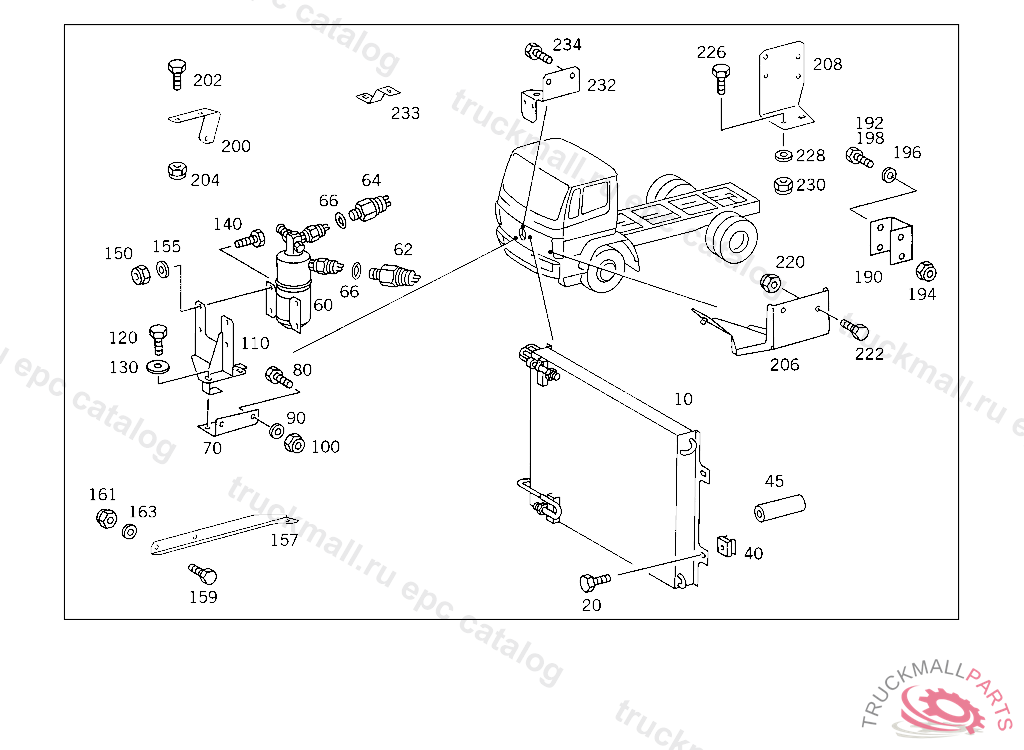

Поз.
Артикул
Описание
10
CONDENSER , Replaced By: A0005001354
10
CONDENSER , Replaced By: A6735000154
10
CONDENSER AIR CONDITIONER
20
SCREW DE-AERATION LINE TO RADIATOR
40
NUT RETAINER LICENSE PLATE TO BRACKET
40
NUT RETAINER , Replaced By: A0019906791
40
NUT RETAINER , Replaced By: A0009902291
45
SPACER TUBE , Replaced By: A1009910740
45
SPACER TUBE REFRIGERANT LINE TO CAB
60
TANK REFRIGERANT,5 954699
60
TANK REFRIGERANT,5 954700
60
TANK , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 5 526949 - 5 564192, Replaced By: A0008301483
60
TANK , Replaced By: A0008301683
62
SWITCH HIGH PRESSURE
64
SWITCH LOW PRESSURE
66
SEAL RING HOSE TO RESERVOIR 10.6 MM
70
BRACKET LIQUID TANK,5 954699
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
90
WASHER , Replaced By: N000125010532
90
WASHER RADIATOR TO RUBBER MOUNTING
100
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
BRACKET AT LIQUID TANK,5 954699
120
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
SCREW , Replaced By: N304017008016
130
WASHER , Replaced By: N009021008213
130
WASHER BRACKET TO LEFT SIDE MEMBER
140
SCREW BRACKET ON LOAD SENSOR
150
NUT PUMP TO BRACKET
150
NUT , Replaced By: N913004006001
155
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
157
BRACKET BRACKET TO COMPRESSOR
159
SCREW VALVE TO CAB M 8X85
161
NUT STRAP TO BRACKET
163
WASHER EXHAUST MUFFLER TO STRAP
163
WASHER , Replaced By: N000125008443
190
BRACKET AT FRAME
192
SCREW , Replaced By: N308676012026
194
NUT SUPPORT TO SIDE MEMBER
196
WASHER BRACKET TO FRAME
198
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
200
BRACKET AT FRONT CROSS MEMBER
202
SCREW CLAMP TO BRACKET AND TO PIPE
204
NUT , Replaced By: N913004008001
206
BRACKET RADIATOR,5 526948
208
BRACKET RADIATOR
220
NUT BRACKET TO WATER RADIATOR
222
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
222
SCREW , Replaced By: N304017008039
226
SCREW , Replaced By: N304017006020
226
SCREW LICENSE PLATE TO BRACKET
228
WASHER COMPRESSED AIR LINE TO BRACKET
230
NUT , Replaced By: N913004006001
230
NUT PUMP TO BRACKET
232
BRACKET RADIATOR MOUNTING,5 954700
233
BRACKET REFRIGERANT LINES
234
SCREW CENTRAL LOCK TO CAB M 10X16
999
VALVE
999
BRACKET RIGHT FRONT
999
BRACKET LIQUID TANK, FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 5 526949 - 5 564192
999
BRACKET REFRIGERANT LINE TO T-FITTING
999
PIPE LINE SUCTION LINE TO VALVE
999
BRACKET AT BRACKET
999
HOSE REFRIGERANT LINE TO T-FITTING,5 954699
