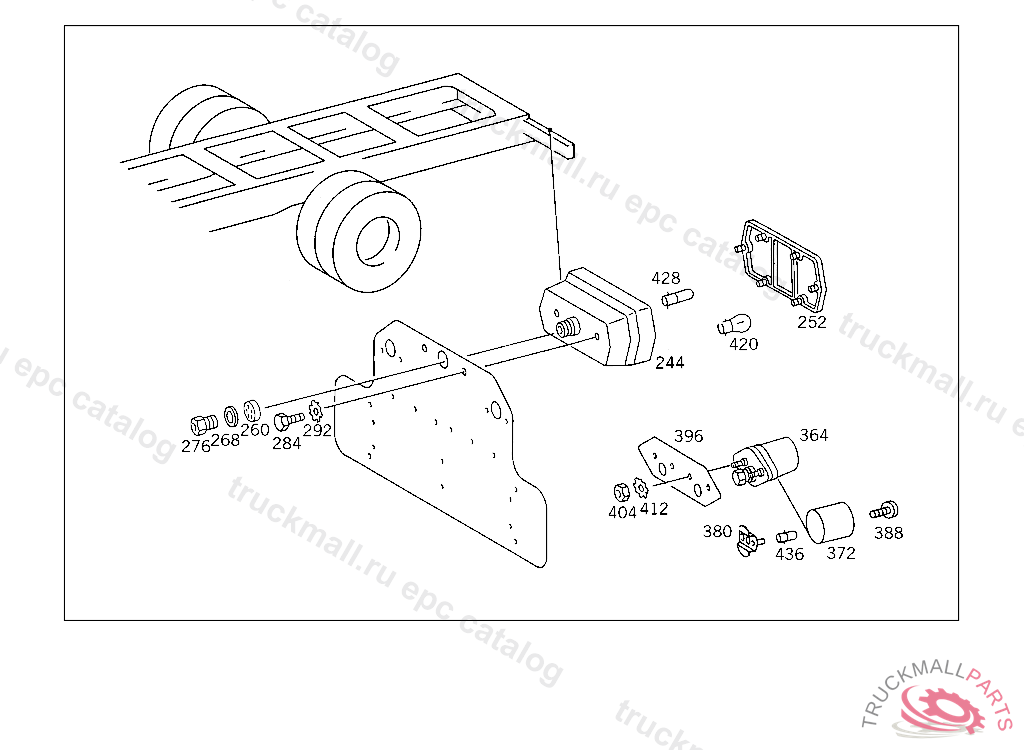

Поз.
Артикул
Описание
244
TAIL LAMP (MASKED TAIL LAMP)
252
LENS MASKED TAIL LAMP
260
PLUG
268
RING
276
SCREW
284
SCREW , Replaced By: N304017008039
284
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
292
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
364
MASKED STOP LAMP
372
LENS
380
LAMP SOCKET
388
SCREW
396
BRACKET , NOT USED
404
NUT BALL PIVOT TO LEVER
412
TOOTHED WASHER MASKED STOP LAMP
420
BULB TAIL LAMP 21 W
420
BULB , Replaced By: N072601024192
428
BULB TAIL LAMP 5 W
436
BULB TELL-TALE LAMP
999
BRACKET , Replaced By: A0005250739
999
BRACKET ,K 057593, Replaced By: A0005250739
999
BRACKET TAIL LAMP,K 057593
999
DIODE BOX RELAY TYP: AK 336.1
999
FUSE , Replaced By: N072581008101
999
GROUND STRAP HEAT RESISTANT, FROM ALTERNATOR TO FRAME SIDE MEMBER GROUND,K 061656
999
CABLE HARNESS FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP
999
CABLE HARNESS FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP
999
SPRING WASHER ALTERNATOR CONNECTION W
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
FUSEA8
999
NUT TWO-WAY VALVE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
