Поз.
Артикул
Описание

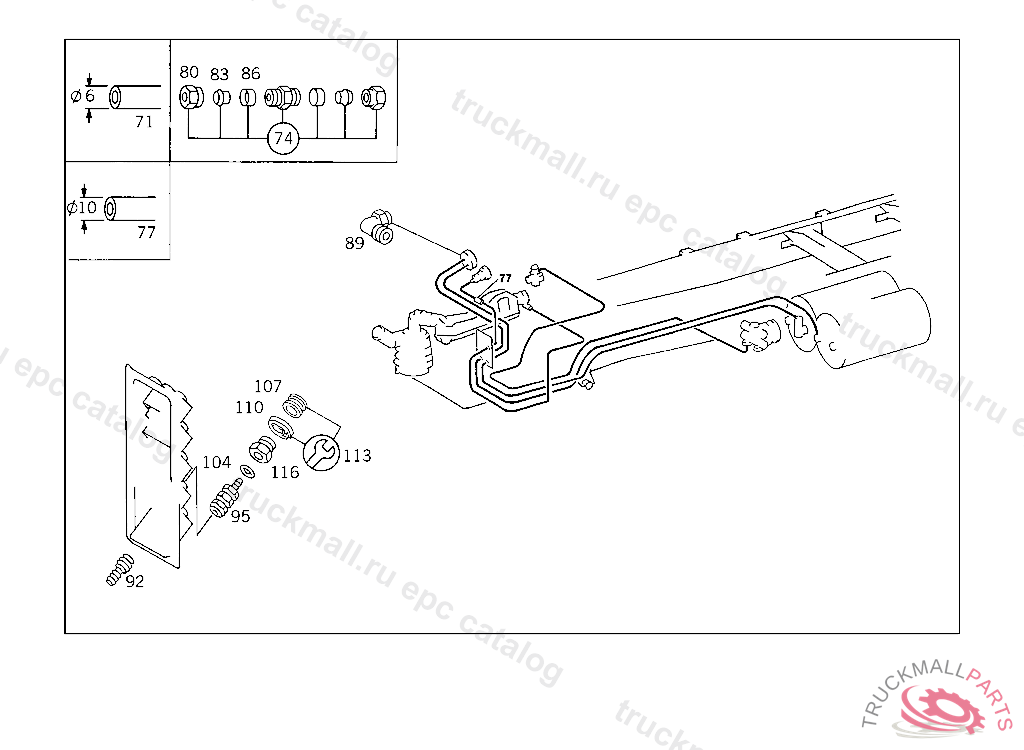

71
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
71
PLASTIC PIPE RISING PIPE 4X6 MM
74
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
77
HOSE LEAK LINE, ORDER BY THE METER
80
UNION NUT
83
SEAL CONE
83
GLAND , Replaced By: A0019901667
86
SLEEVE LEAK LINE
89
FITTING FROM PUMP TO CYLINDER
89
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
92
CONNECTOR , Replaced By: A0029905378
92
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
95
CONNECTOR LINE MOUNTING
104
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
107
LOCK RING LINE CONNECTION
107
SEAL RING , Replaced By: A0009940747
110
LOCK , Replaced By: A0009945448
110
LOCK LINE CONNECTION
113
REPAIR KIT , Replaced By: A0309971748
113
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
116
SCREW. UNION SCREW LINE CONNECTION
116
SCREW. UNION SCREW , Replaced By: A0009973734
999
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
PLUG BLEEDING,D 013038
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTOR DISTRIBUTOR TO CAB
999
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
999
ELBOW FITTING
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR HOSE WIDTH, / I.D., 6 MM
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
