Mercedes N910005014056 - ЗАКЛЕПКА

1324 679.032

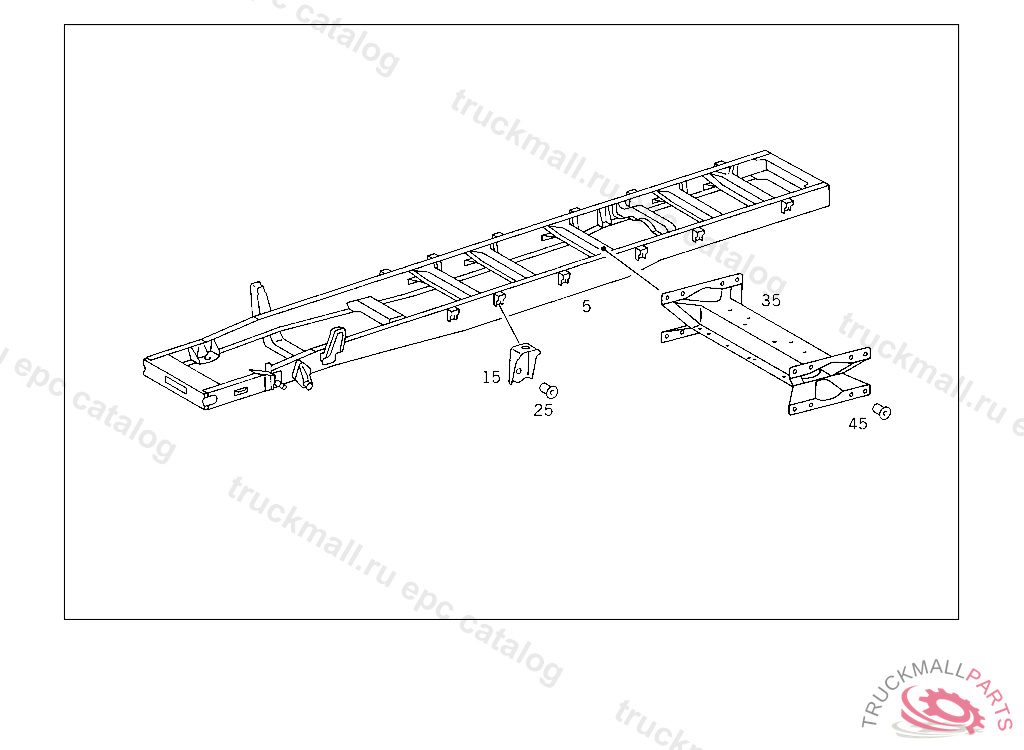

31 FRAME - 120 FRAME ASSEMBLY, SCREW CONNECTION PARTS

Поз.
Артикул
Описание
5
A6773109101
FRAME
5
A6773106201
FRAME
5
A6773108601
FRAME
5
A6773102901
FRAME
5
A6773101601
FRAME
5
A6773100801
FRAME
5
A6773106301
FRAME
5
A6773105401
FRAME
5
A6773105201
FRAME
5
A6773107801
FRAME
5
A6773104901
FRAME
5
A6773109501
FRAME
5
A6773109401
FRAME
5
A6773109601
FRAME
5
A6773105501
FRAME
5
A6773103101
FRAME
5
A6773103901
FRAME
5
A6773108501
FRAME
5
A6733105201
FRAME
5
A6773109301
FRAME
5
A6773104201
FRAME
5
A6773103201
FRAME
5
A6773109001
FRAME
5
A6773104101
FRAME
5
A6753109301
FRAME
5
A6773107201
FRAME
5
A6753109101
FRAME
5
A6773100401
FRAME
5
A6753109601
FRAME
5
A6773101401
FRAME
5
A6753109901
FRAME
5
A6773105701
FRAME
5
A6733106401
FRAME
5
A6753100202
FRAME
5
A6773107101
FRAME
5
A6773107601
FRAME
5
A6773103801
FRAME
5
A6773105001
FRAME
15
A6733171101
CONSOLE BODY MOUNTING
25
N910005010084
RIVET CONSOLE TO SIDE MEMBER 10X26 MM
25
N910005010014
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
35
A6753100137
CROSS MEMBER SPARE WHEEL CARRIER, TO BE ADAPTED DURING ASSEMBLY
45
N910005010014
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
45
N910005014056
RIVET FRAME TRUSS TO SIDE MEMBER
45
N910005010020
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
999
N910005014049
RIVET SUPPORT TO SIDE MEMBER 14X30
