Mercedes N000000005892 - Хомут 130 / 150 X 13

1524 L 679.225

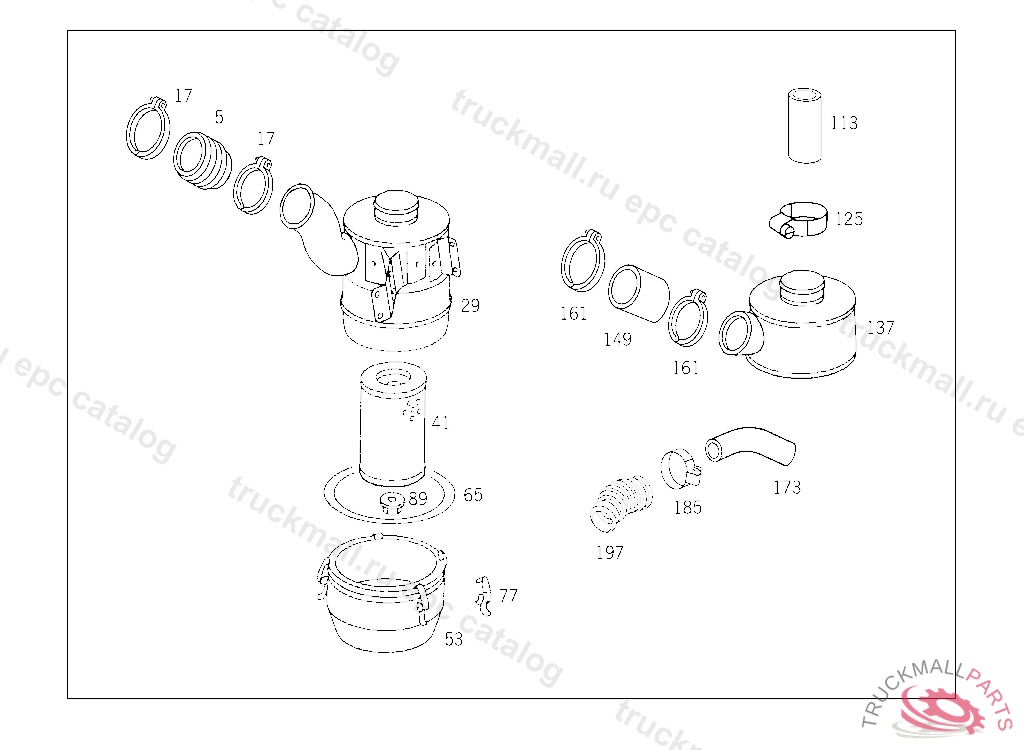

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 1

Поз.
Артикул
Описание
5
A6795280091
BOOT AIR INTAKE
17
A3815280443
CLAMP BOOT TO INTAKE PIPE
29
A0160945802
AIR CLEANER , Replaced By: A0160945902
29
A6990900501
AIR CLEANER
29
A0160945902
AIR CLEANERMANN & HUMMEL
41
A0030946004
FILTER ELEMENT
53
A0010941203
FILTER BOWL LOWER PART
65
A0010949880
GASKET
77
A0000941255
FASTENER
89
A0009901550
NUT
113
A6995281682
HOSE FROM AIR CLEANER TO MUFFLER
125
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
125
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
125
N916017130000
CLAMP , Replaced By: N000000000678
137
A6990900004
AIR CLEANER (INTAKE MUFFLER)
149
A6995281582
HOSE FROM MUFFLER TO INTAKE FITTING
161
N916017090000
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
173
A6995283408
AIR INTAKE PIPE
185
A6454921140
CLAMP EXHAUST PIPE TO BRACKET
197
A6735280582
HOSE FROM MUFFLER TO ENGINE
999
A0000940810
PIPE SOCKET
999
A0000945042
CLAMP
999
A6995288440
BRACKET AT SIDE MEMBER
