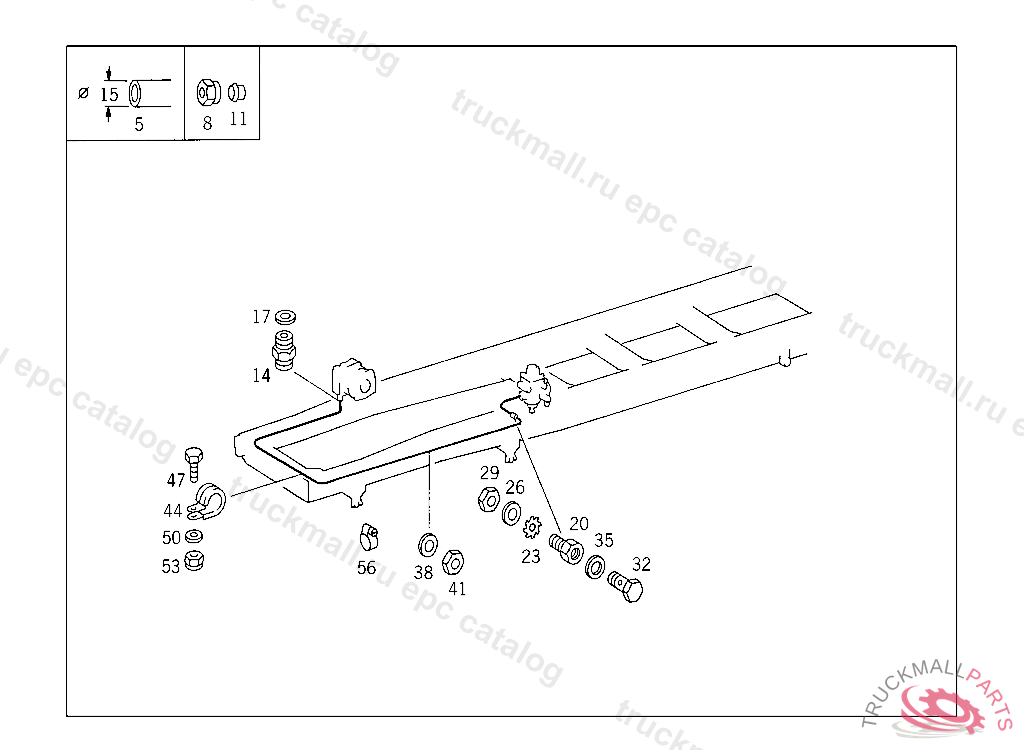

Поз.
Артикул
Описание
5
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM
5
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
CONNECTOR AIR RESERVOIR
17
SEAL RING LINE CONNECTION
20
ADAPTER FITTING THROUGH SIDE MEMBER
23
TOOTHED WASHER SENDER UNIT TO BRACKET
26
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
29
NUT BRACKET TO SIDE MEMBER
32
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
35
SEAL RINGTO 006 997 00 72
38
WASHER SUPPORT TO FRAME,D 127794
41
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
44
CLAMP
44
CLAMP COMPRESSED AIR LINE TO CROSS MEMBER
44
CLAMP STAY TO BRACKET
47
SCREW LINES TO BRACKET
50
WASHER TRAILER PLUG SOCKET TO BRACKET
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
CLAMP LINE MOUNTING
