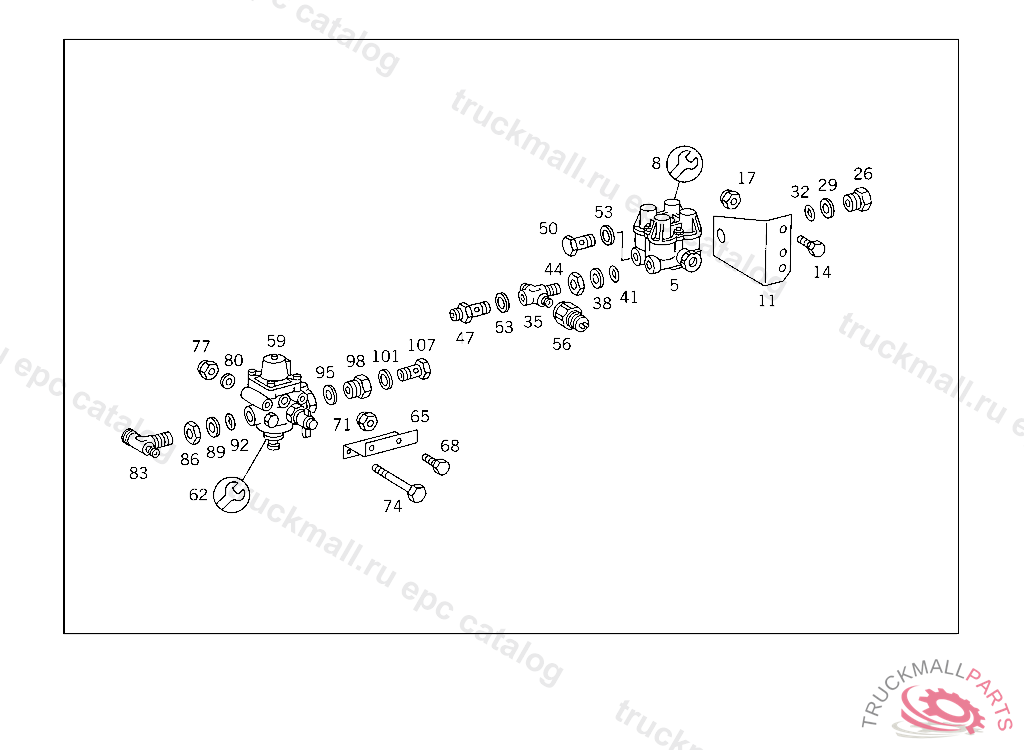

Поз.
Артикул
Описание
5
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
5
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
8
REPAIR KITTO 345 431 74 06
8
REPAIR KITTO 001 431 30 06
11
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
14
SCREW BEARING BRACKET TO SIDE MEMBER
17
NUT BRACKET TO SIDE MEMBER
26
FITTING AIR RESERVOIR,CONNECTION: "11"
29
THRUST RING CHECK VALVE TO AIR RESERVOIR
29
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
O-RING CHECK VALVE TO AIR RESERVOIR
35
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
38
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
47
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
50
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
53
SEAL RINGTO 006 997 00 72
56
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
56
SWITCH SUPPLY PRESSURE,5 966147
59
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
59
PRESSURE REGULATOR , Replaced By: A0024314306
59
PRESSURE REGULATOR , Replaced By: A0024314906
59
PRESSURE REGULATOR , Replaced By: A0024318306
62
REPAIR KIT SEAL RING BOSCH,209
62
REPAIR KITTO 001 431 98 06
62
REPAIR KIT DIAPHRAGM PART BOSCH,209
62
REPAIR KIT , Replaced By: A0004301107
62
REPAIR KITTO 002 431 83 06
62
REPAIR KIT VALVE KIT WABCO,5 148812
65
BRACKET PRESSURE REGULATOR
65
BRACKET , Replaced By: A3944207086
68
SCREW , Replaced By: N304017010002
71
NUT BRACKET TO SIDE MEMBER,XB209706
74
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
WASHER TRAILER PLUG SOCKET TO BRACKET
83
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
86
NUT CHECK VALVE TO AIR RESERVOIR
89
THRUST RING CHECK VALVE TO AIR RESERVOIR
89
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
SEAL RING LINE CONNECTION
98
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
101
SEAL RINGTO 006 997 00 72
107
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
999
REPAIR KITTO 002 431 01 06
999
VALVE , Replaced By: A0024314006
999
VALVE , Replaced By: A3454317406
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
999
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
