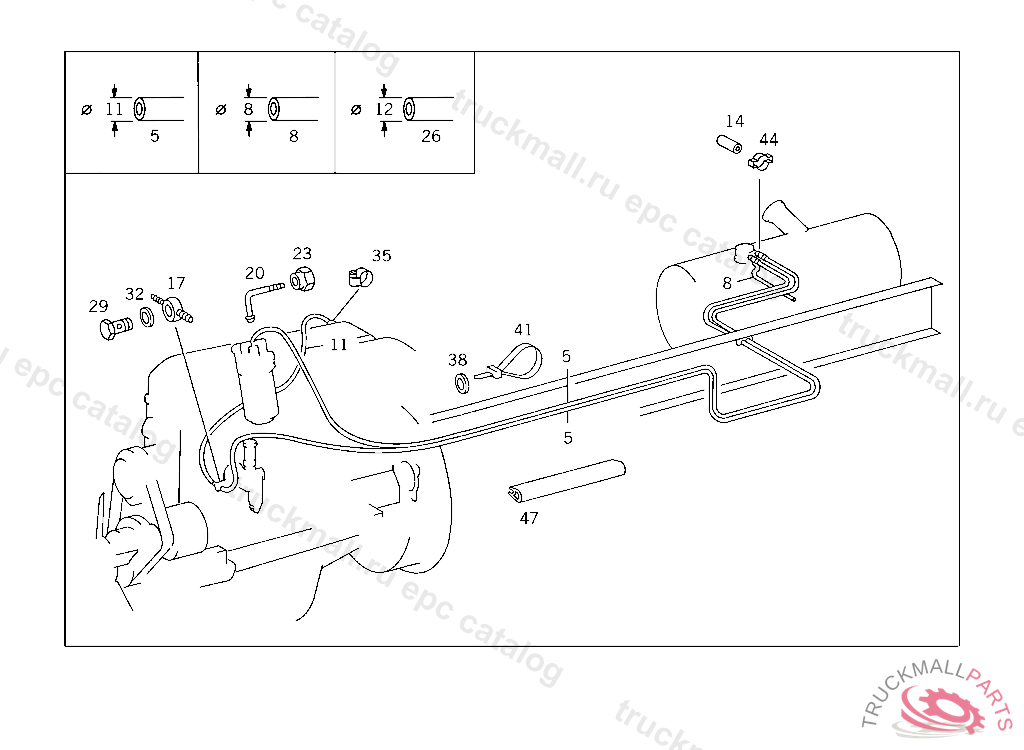

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
HOSE , Replaced By: A3769978182
11
HOSE , Replaced By: A3849977082, +001A3829907088
11
HOSE , ORDER BY THE METER
14
HOSE FEED LINE AND RETURN LINE
17
BANJO UNION FEED
17
BANJO UNION CONNECTION OF FUEL LINES
20
CONNECTOR
23
NUT. UNION NUT RETURN
26
INSULATING HOSE CHECK VALVE,CONNECTION "2"
26
INSULATING HOSE , ORDER BY THE METER
29
HOLLOW SCREW
32
SEALING RING. SEAL RING ENGINE BREATHING
35
CLAMP LINE MOUNTING
38
WASHER , Replaced By: A3609902340
41
LOOM TIE ELECTRIC CABLE MOUNTING
41
LOOM TIE LINE MOUNTING
41
LOOM TIE , Replaced By: A3459977390
44
CLAMP , Replaced By: N916017011001
44
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
47
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
