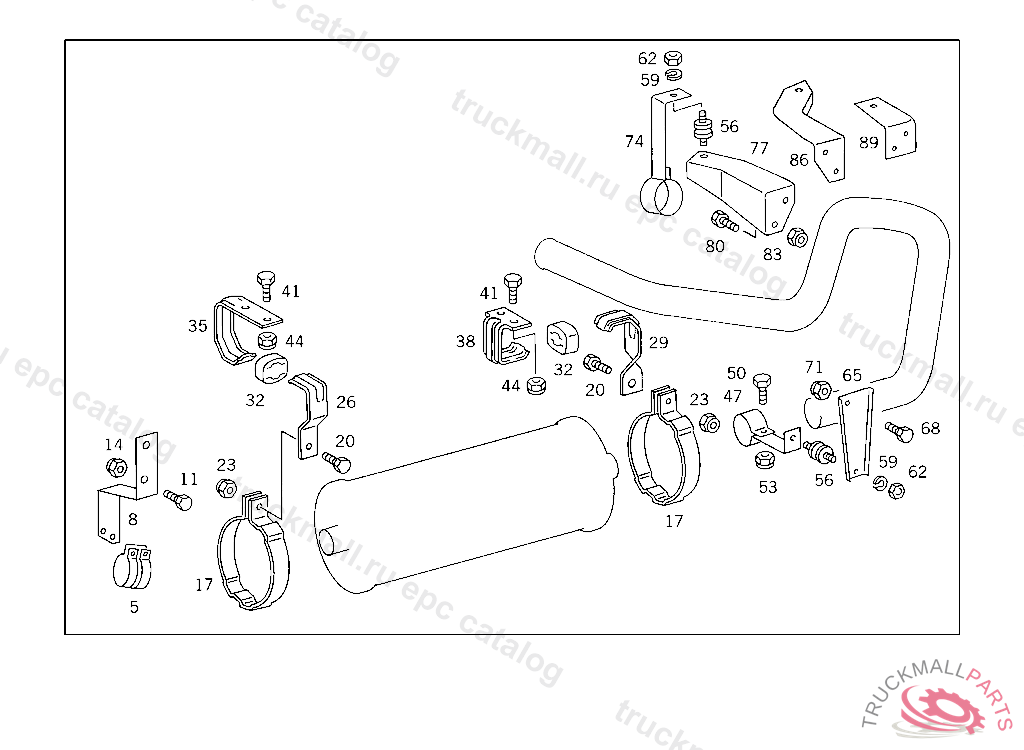

Поз.
Артикул
Описание
5
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
8
BRACKET EXHAUST PIPE SUSPENSION
11
SCREW BRACKET TO CAB MOUNTING CONSOLE
14
NUT BRACKET TO SIDE MEMBER
17
CLAMP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
20
SCREW EXHAUST PIPE TO BRACKET
23
NUT , Replaced By: N910113010000
26
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
29
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
32
DAMPING PAD PARTICLE FILTER
35
SUPPORT FRONT EXHAUST MUFFLER
38
SUPPORT REAR EXHAUST MUFFLER
41
SCREW , Replaced By: N000933012068
41
SCREW SUPPORT TO CROSS MEMBER M 10X28
44
NUT BRACKET TO LEFT SIDE MEMBER
44
NUT , Replaced By: N910113010000
47
BRACKET , Replaced By: A3834927941
50
SCREW , Replaced By: N304017010002
53
NUT , Replaced By: N910113010000
56
RUBBER BUFFER BRACKET TO SUPPORT
59
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
62
NUT BRACKET TO SUPPORT AND TO END PIECE
65
SUPPORT TAIL PIPE
68
SCREW , Replaced By: N304017008034
71
NUT , Replaced By: N913004008001
