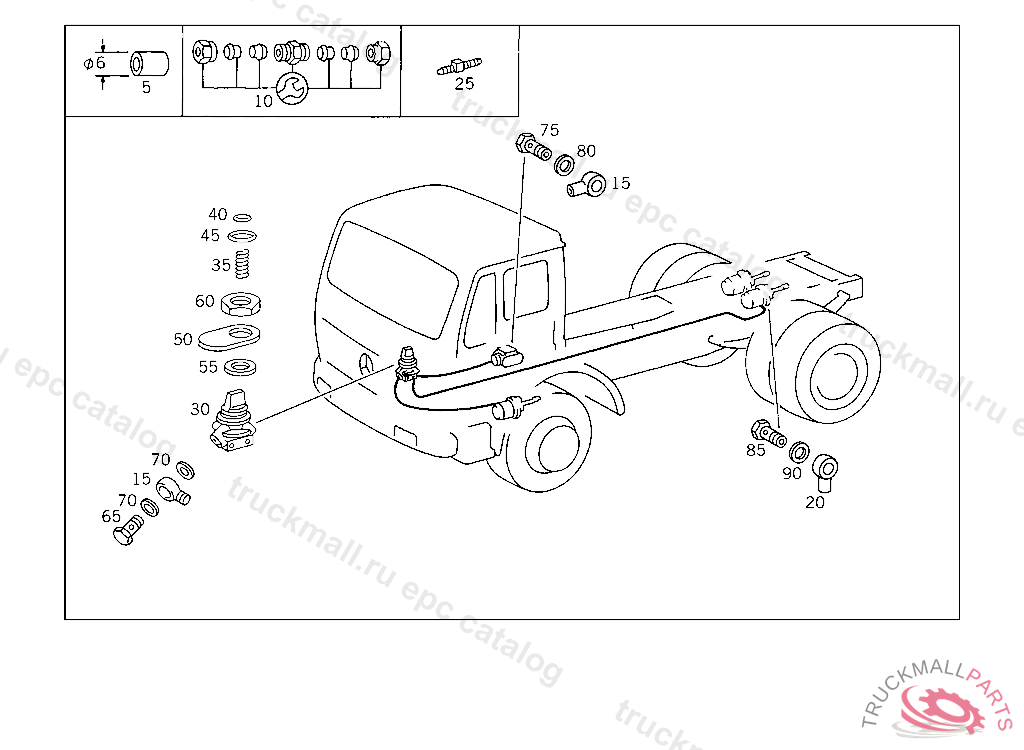

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
15
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
20
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
25
CONNECTOR
30
VALVE 3/2-WAY BOSCH
30
VALVE 3/2-WAY WABCO
30
VALVE 3/2-WAY VOSS
30
VALVE 3/2-WAY KNORR
35
SPRING INSIDE WABCO
40
SEAL RING INSIDE WABCO
45
SEAL RING TOP WABCO
50
SYMBOL PLATE
50
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
50
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
55
WASHER AT TWO-WAY VALVE
60
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
65
HOLLOW SCREW LINE CONNECTION
70
SEAL RING LINE CONNECTION
75
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
85
HOLLOW SCREW HEATING CONNECTION
90
SEAL RING LINE CONNECTION
