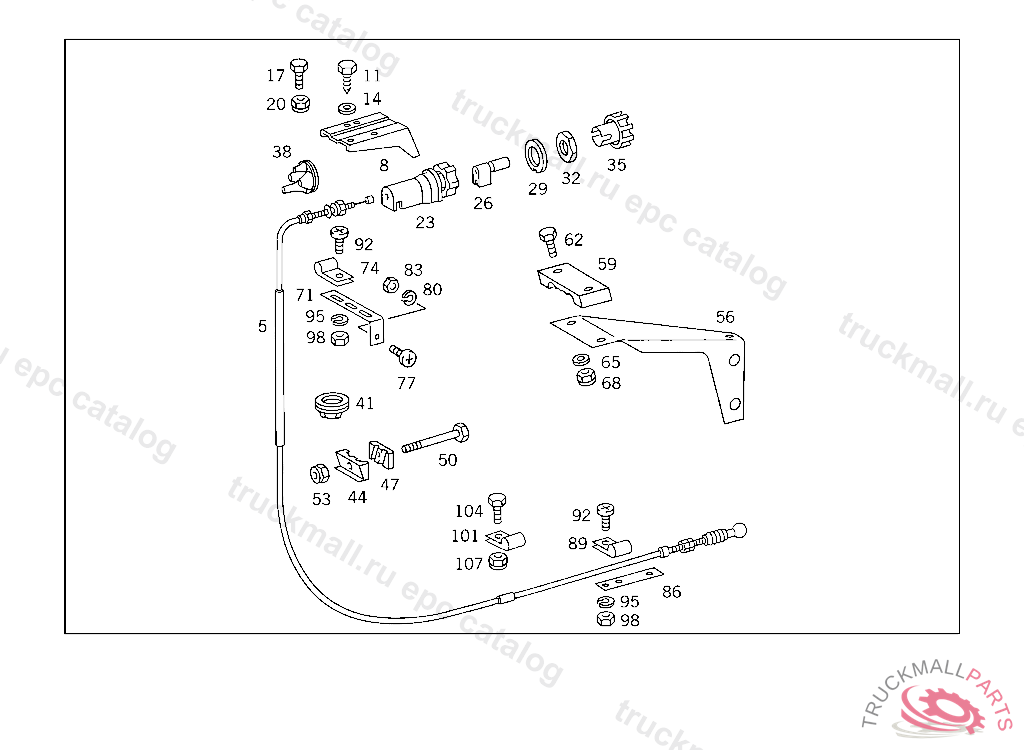

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL
5
WIRE CABLE IDLING ADJUSTMENT
8
BRACKET
11
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
11
SHEET METAL SCREW , Replaced By: N914031005208
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
SCREW COVER PLATE TO BRACKET
20
NUT , Replaced By: N913004006001
23
MANUAL CONTROL IDLING ADJUSTMENT
26
GUIDE MANUAL CONTROL
29
FITTED WASHER MANUAL CONTROL
32
NUT MANUAL CONTROL
35
KNOB MANUAL CONTROL
38
GROMMET
38
GROMMET WIRE CABLE THRU WINDOW SILL
41
PLUG IN CAB FIRE WALL,USED FOR IDLING CABLE
41
PLUG CAB FLOOR SEALING
44
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
47
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
50
SCREW CONNECTOR
53
NUT , Replaced By: N913004006001
56
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014669 416 5 000516 417 4 972024
59
CLAMPING PIECE CABLE TO BRACKET
62
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
NUT , Replaced By: N913004006001
71
BRACKET CABLE HARNESS MOUNTING
74
CLAMP ,K 147121, Replaced By: N000000000319
74
CLAMP , Replaced By: N916016008200
74
CLAMP , Replaced By: A3604300143
77
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
NUT BALL PIVOT TO LEVER
86
BRACKET FEED LINE AND RETURN LINE,5 346007
89
CLAMP , Replaced By: A6739950001
89
CLAMP LINE MOUNTING
92
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
98
NUT BALL PIVOT TO LEVER
101
CLAMP WIRE CABLE TO BRACKET
104
SCREW END PIECE TO EXHAUST PIPE M 10X25
107
NUT , Replaced By: N910113010000
