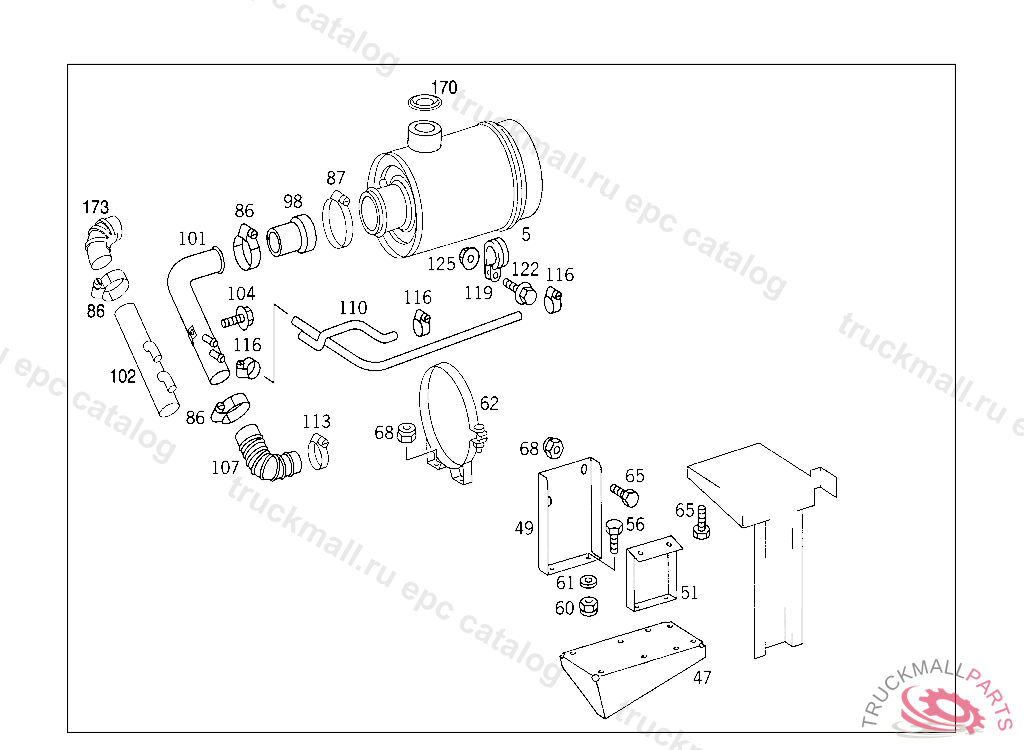

Поз.
Артикул
Описание
5
AIR CLEANER ,D 010654
5
AIR CLEANER ,D 010655
47
BRACKET ,D 005960
49
BRACKET ,D 005960
51
BRACKET ,D 005960
56
SCREW PLUG SOCKET TO FRAME
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
WASHER TRAILER PLUG SOCKET TO BRACKET
62
STRAP ,D 001765
62
STRAPTO 376 090 85 01
65
SCREWM 10X20
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
NUT , Replaced By: N910113010000
86
LOOM TIE
86
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
86
CLAMP , Replaced By: A0059970690
87
CLAMP , Replaced By: N000000000678
98
HOSE FROM AIR CLEANER TO ENGINE,D 00718706.2001
101
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE,D 00718706.2001
102
AIR INTAKE PIPE FROM AIR CLEANER TO ENGINE,D 010655
104
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
107
HOSE AIR INTAKE PIPE,D 010655
107
HOSE AIR INTAKE PIPE,D 00718706.2001
110
HOSE AIR INTAKE PIPE 25 X 1350MM, ORDER BY THE METER
110
HOSE AIR INTAKE PIPE
113
CLAMP HOSE TO PIPE ELBOW AND TO ENGINE CONNECTION
113
CLAMP FROM ENGINE TO TRANSMISSION
116
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
116
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
119
CLAMP
122
SCREW , Replaced By: N910142008001
122
SCREW , Replaced By: N910143008002
125
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
170
RUBBER CAP
173
HOSE AIR INTAKE PIPE,D 010655
