Поз.
Артикул
Описание
47

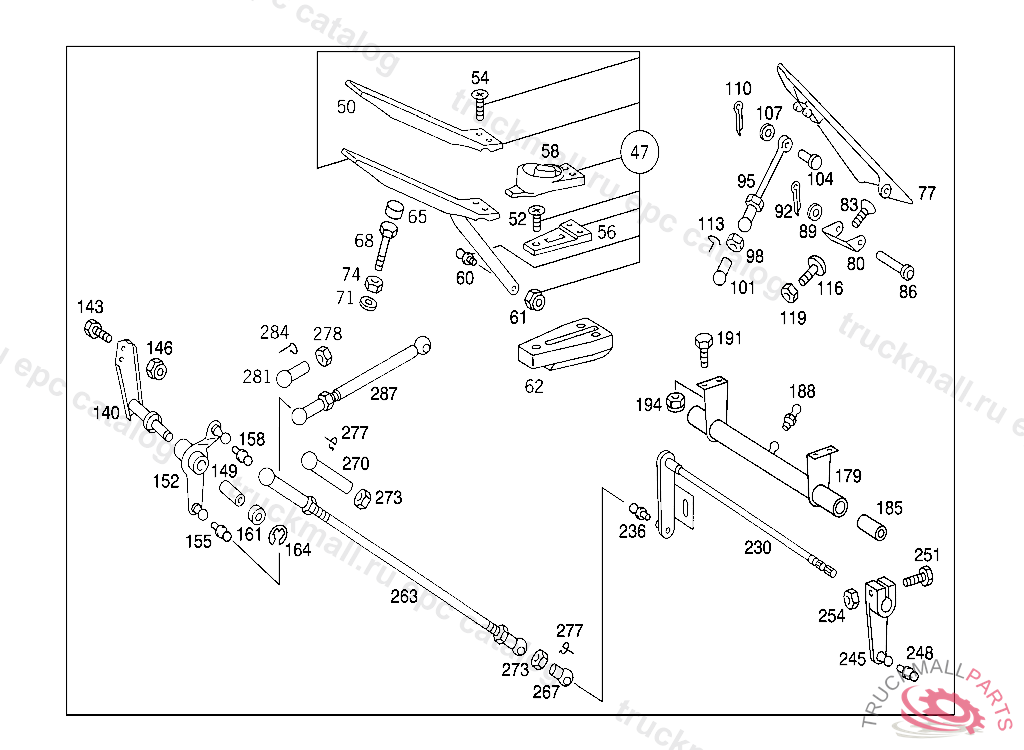

ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
50
PAD ACCELERATOR PEDAL
52
SCREW ACCELERATOR PEDAL M6X20,B 990550010626
54
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M6X25,B 990550010626
56
SHIM ACCELERATOR PEDAL
58
BOOT ACCELERATOR PEDAL
60
BALL PIVOT LOAD SENSOR
61
NUT PUMP TO BRACKET
62
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
65
STOP ACCELERATOR PEDAL
68
SCREW REGULATING VALVE TO BRACKET
71
WASHER , Replaced By: N000125008443
74
NUT TAIL LAMP TO BRACKET
77
PEDAL PLATE ACCELERATOR PEDAL
80
ARTICULATION PIECE ACCELERATOR PEDAL
83
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
86
PIN ACCELERATOR PEDAL TO JOINT
89
WASHER RADIATOR TO RUBBER MOUNTING
92
COTTER PIN STRAP TO BRACKET
95
ROD ACCELERATOR CONTROL
98
NUT
101
BALL SOCKET ROD TO BALL PIVOT
104
PIN ROD TO PEDAL PLATE
107
WASHER COMPRESSED AIR LINE TO BRACKET
110
COTTER PIN ROD TO INTERMEDIATE LEVER
113
SECURING CLIP. CIRCLIP
116
STOP
116
STOP
119
NUT
140
BEARING BRACKET INTERMEDIATE BEARING
143
SCREW SWITCH TO BRACKET 8X16
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
152
LEVER INTERMEDIATE BEARING
155
BALL STUD. BALL PIVOT TOP B10X4,5 MM
158
BALL PIVOT BOTTOM B13X5 MM
161
COVERING , Replaced By: A6153010088
164
LOCK PLATE INTERMEDIATE BEARING
188
GREASE NIPPLE
188
GREASE NIPPLE PROTECTIVE TUBE
230
INTERMEDIATE SHAFT ACCELERATOR CONTROL
230
INTERMEDIATE SHAFT ,B 990550010626
236
BALL PIVOT BOTTOM B13X5 MM
245
LEVER ACCELERATOR CONTROL
248
BALL PIVOT LEVER
251
SCREW , Replaced By: N000000001479
254
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
263
ROD FROM INTERMEDIATE BEARING TO SHAFT,B 990550NAO 15/97 22.04.98
263
ROD FROM INTERMEDIATE BEARING TO SHAFT,NAO 15/97 22.04.98010626
267
BALL SOCKET ROD TO BALL PIVOT
270
BALL SOCKET ,B 990550010626
273
NUT GRIP RAIL MOUNTING
277
SECURING CLIP. CIRCLIP
278
NUT BALL PIVOT TO LEVER
281
BALL SOCKET PULL ROD TO LEVER
284
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
287
ROD FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER
999
BALL SOCKET AT CONTROL LEVER
999
PULL ROD6X180X30/30
