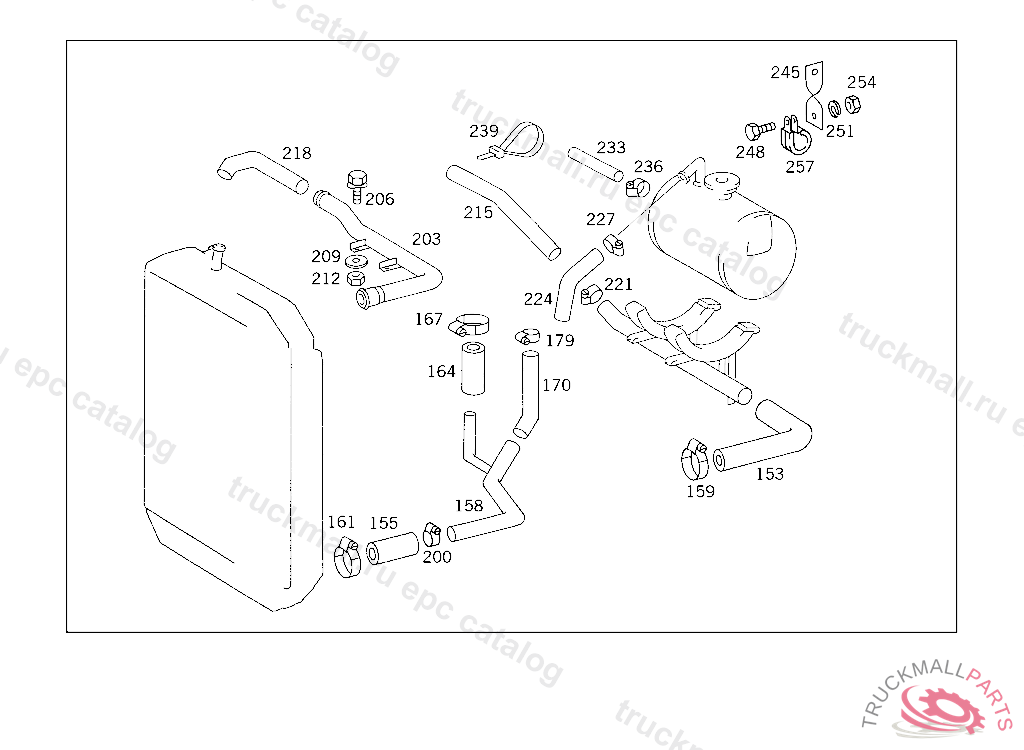

Поз.
Артикул
Описание
153
HOSE RADIATOR TO SUPPORT
155
HOSE FROM RADIATOR TO EXPANSION TANK
158
SEPARATOR (BUBBLE SEPARATOR),D 163706
158
SEPARATOR (BUBBLE SEPARATOR),D 010627
159
CLAMP CHARGE AIR INTERCOOLER
159
LOOM TIE HOSE TO FILLER NECK
161
CLAMP HOSE FASTENING 50-70X13 MM
164
HOSE THERMOSTAT,HEATING CONNECTION 38 X 50 X 430
164
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR 38 X 50 X 960MM
167
CLAMP CHARGE AIR INTERCOOLER
167
LOOM TIE HOSE TO FILLER NECK
170
HOSE
179
CLAMP HOSE FASTENING 50-70X13 MM
179
CLAMP
179
LOOM TIE HOSE TO FILLER NECK
179
CLAMP CHARGE AIR INTERCOOLER
203
LINE COOLING WATER LINE TO BRACKET,B 949088
215
HOSE BRACKET TO RETAINING CLAMP,JB796308
218
HOSE FROM THERMOSTAT TO PIPE LINE,B 949088
221
CLAMP CHARGE AIR INTERCOOLER
221
LOOM TIE HOSE TO FILLER NECK
224
HOSE FROM EXPANSION TANK TO RADIATOR
227
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
233
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
233
HOSE FROM RADIATOR TO EXPANSION TANK
236
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
239
LOOM TIE ELECTRIC CABLE MOUNTING
239
LOOM TIE LINE MOUNTING
245
BRACKET DE-AERATION LINE TO EXPANSION TANK
248
SCREW PUMP TO BRACKET
251
LOCK WASHER CABLE TO FUSE BOX
254
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
257
CLAMP DELIVERY AND SUCTION LINES TO FRAME
