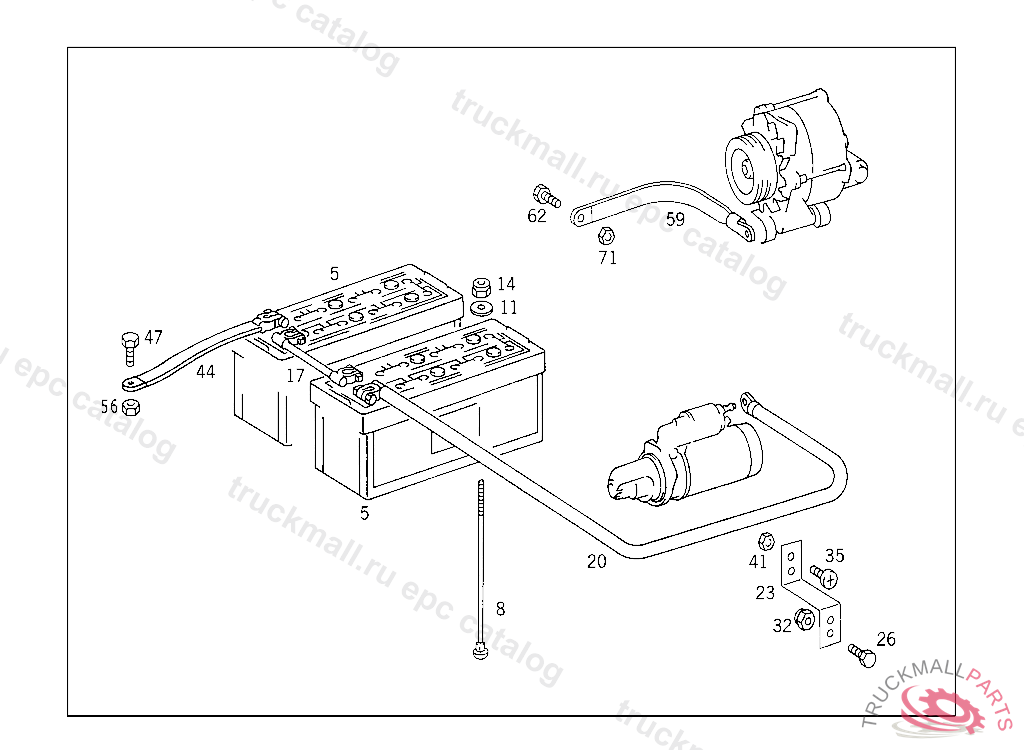

Поз.
Артикул
Описание
5
BATTERY LESS ACID 12V,150 AH
5
BATTERY LESS ACID 12V,150 AH
8
SCREW BATTERY TO BATTERY CASE
11
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
14
NUT , Replaced By: N910113010000
17
POSITIVE CABLE FROM BATTERY I TO BATTERY II
17
POSITIVE CABLE , Replaced By: A3825407230
20
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
23
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
26
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
32
NUT HORN TO BRACKET M8
35
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
41
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
44
NEG. CABLE FROM BATTERY TO SIDE MEMBER
47
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
56
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
GROUND STRAP FROM ALTERNATOR TO FRAME SIDE MEMBER
59
GROUND STRAP FROM ALTERNATOR TO FRAME SIDE MEMBER,774713
59
ELECTRIC CABLE GROUND CABLE TO GENERATOR
62
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
62
SCREW RADIATOR TO BUFFER
62
SCREW GROUND CABLE
62
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
71
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
71
NUT BRACKET TO RETARDER
