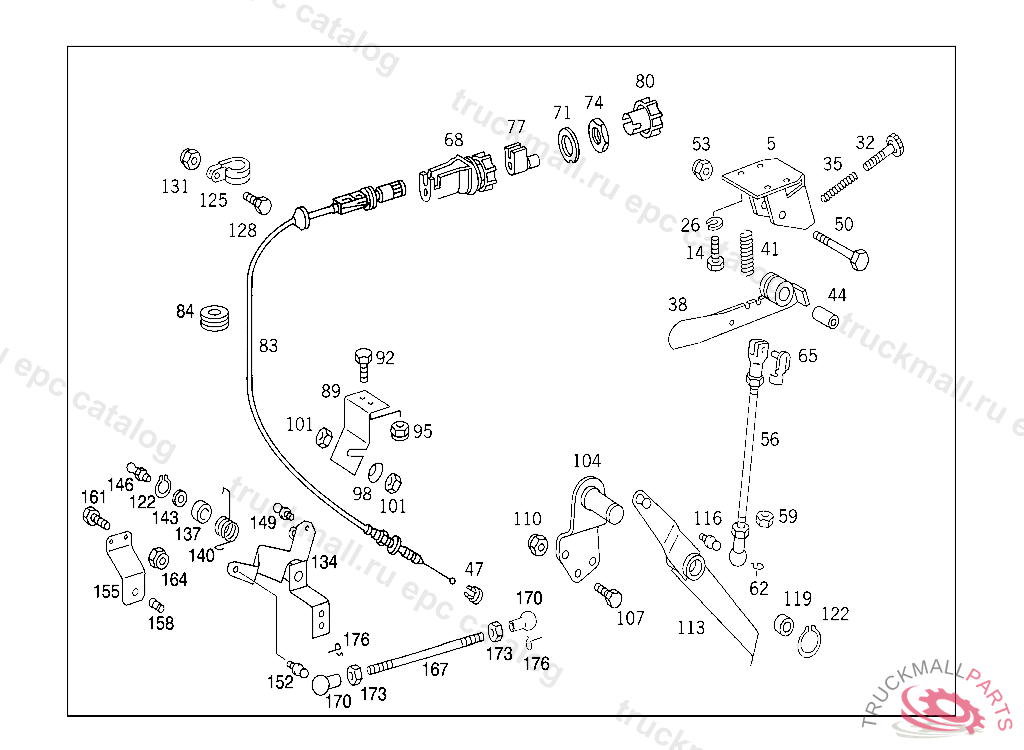

Поз.
Артикул
Описание
5
BRACKET MANUAL CONTROL, USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
14
SCREW BRACKET TO BEARING BRACKET M 6X16
26
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
32
SCREW , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
32
SCREW , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
35
SPRING , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
38
LEVER MANUAL CONTROL, USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
41
SPRING , USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
44
BUSHING LEVER TO BRACKET, USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
47
BUSHING CONTROL LEVER,B 892892
50
SCREW AIR SPRING VALVE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
ROD FROM DOUBLE LEVER TO INTERMEDIATE LEVER, USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
59
NUT BALL PIVOT TO LEVER
62
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
65
PIN OPERATING ROD TO BRACKET
68
MANUAL CONTROL IDLING ADJUSTMENT
71
FITTED WASHER MANUAL CONTROL
74
NUT MANUAL CONTROL
77
GUIDE MANUAL CONTROL
80
KNOB MANUAL CONTROL
83
WIRE CABLE IDLING ADJUSTMENT
83
WIRE CABLE MANUAL IDLING CONTROL
83
WIRE CABLE IDLING ADJUSTMENT
84
GROMMET ,D 314239
89
BRACKET IDLING ADJUSTMENT,B 990550010626
92
SCREW SWITCH TO BRACKET 8X16
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
SPHERICAL WASHER WIRE CABLE TO LEVER,B 990550
101
NUT ,B 884219
104
BEARING BRACKET
107
SCREW IGNITION COIL TO BRACKET
110
NUT , Replaced By: N913004008001
113
LEVER
116
BALL PIVOT CONTROL SHAFT
119
BUSHING , USED WITH AIR BRAKE
122
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
125
CLAMP LINE MOUNTING
128
SCREW BRACKET MOUNTING
128
SCREW
131
NUT TWO-WAY VALVE TO BRACKET
134
LEVER ACCELERATOR CONTROL
137
BUSHING , USED WITH AIR BRAKE
140
SPRING DOUBLE LEVER,D 208694
143
FITTED WASHER , USED WITH AIR BRAKE
146
GREASE NIPPLE
149
BALL PIVOT
152
BALL PIVOT LEVER
155
BRACKET DOUBLE LEVER,010627
158
PIN DOUBLE LEVER,010627
161
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
164
NUT HORN TO BRACKET M8
167
PULL ROD FROM INTERMEDIATE LEVER II TO REAR CONTROL SHAFT 6X360X30/30
170
BALL SOCKET PULL ROD TO LEVER
173
NUT SPRING-LOADED PUSH ROD
176
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
