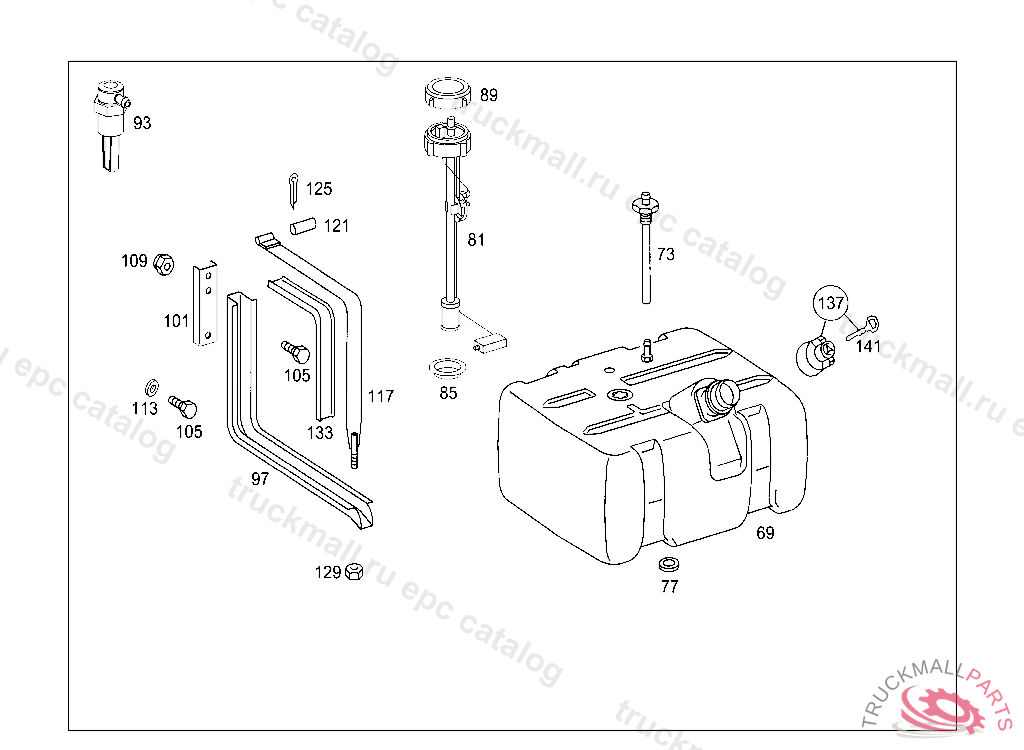

Поз.
Артикул
Описание
69
FUEL TANK210 L
73
LINETO A 695 470 00 01
77
SEAL RING FUEL STRAINER SCREEN
81
FUEL GAUGE DASH UNITTO A 695 470 00 01/01 03
85
SEAL RINGTO A 695 470 00 01/01 03
89
FILLER CAPTO A 695 470 00 01/01 03
93
AERATION VALVE. VALVE TANK VENT VALVE
93
VALVE (VENT VALVE)
97
CONSOLE FUEL TANK,FRONT AND REAR
101
105
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
105
PART NAME MISSING1/2-13
109
PART NAME MISSING1/2-13
109
NUT SUPPORT TO FRAME
113
PART NAME MISSING CONSOLE TO FRAME 1/2
117
STRAP FUEL TANK TO SUPPORT
121
PIN STRAP TO CONSOLE
125
COTTER PIN STRAP TO SUPPORT
129
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
133
SHIM FUEL TANK TO CONSOLE
137
OUTFIT (LOCK,KEY,HANDLE)
141
KEY
