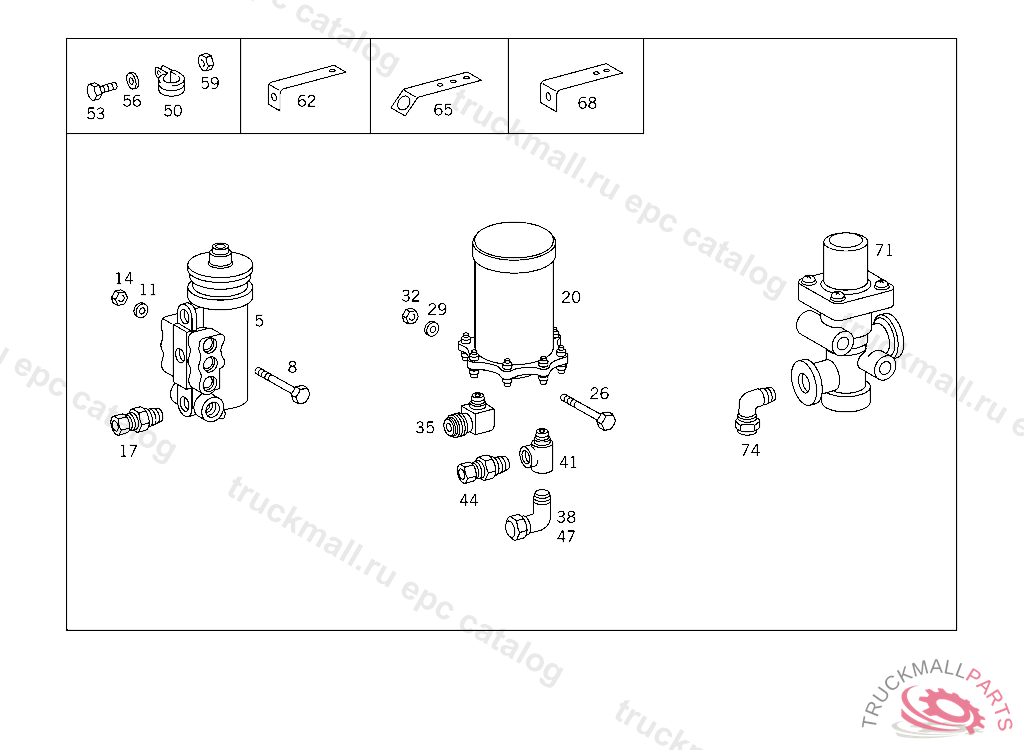

Поз.
Артикул
Описание
5
VALVE , ONLY APPLICABLE TO BM 685.441-327,310
8
PART NAME MISSING SCREW 5/16-18 X 3 FG8
11
WASHER VALVE TO BRACKET 5/16
14
PART NAME MISSING NUT
17
PART NAME MISSING FITTING 1/8 NPT X 1/4 T, ONLY APPLICABLE TO BM 685.441-327,310
20
ANTI-FREEZE DEVICE , ONLY APPLICABLE TO BM 685.441-327,310
26
PART NAME MISSING SCREW 3/8-16 F.G
29
PART NAME MISSING SPRING WASHER
32
PART NAME MISSING NUT
35
PART NAME MISSING ELBOW FITTING 1/2 NPT X 7/8-14
38
PART NAME MISSING ELBOW FITTING 90 1/2 NPTF X 5/8 T, ONLY APPLICABLE TO BM 685.441-327,310
41
PART NAME MISSING T-FITTING
44
PART NAME MISSING FITTING, ONLY APPLICABLE TO BM 685.441-327,310
47
PART NAME MISSING ELBOW FITTING, INAPPLICABLE TO BM 685.458-002
50
PART NAME MISSING CLAMP
50
PART NAME MISSING CLAMP
53
SCREW SCREW 1/4-20,3AM 685442 50 038885
56
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
59
NUT NUT
62
ANGLE , ONLY APPLICABLE TO BM 685.441-327,310
71
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE)
74
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
