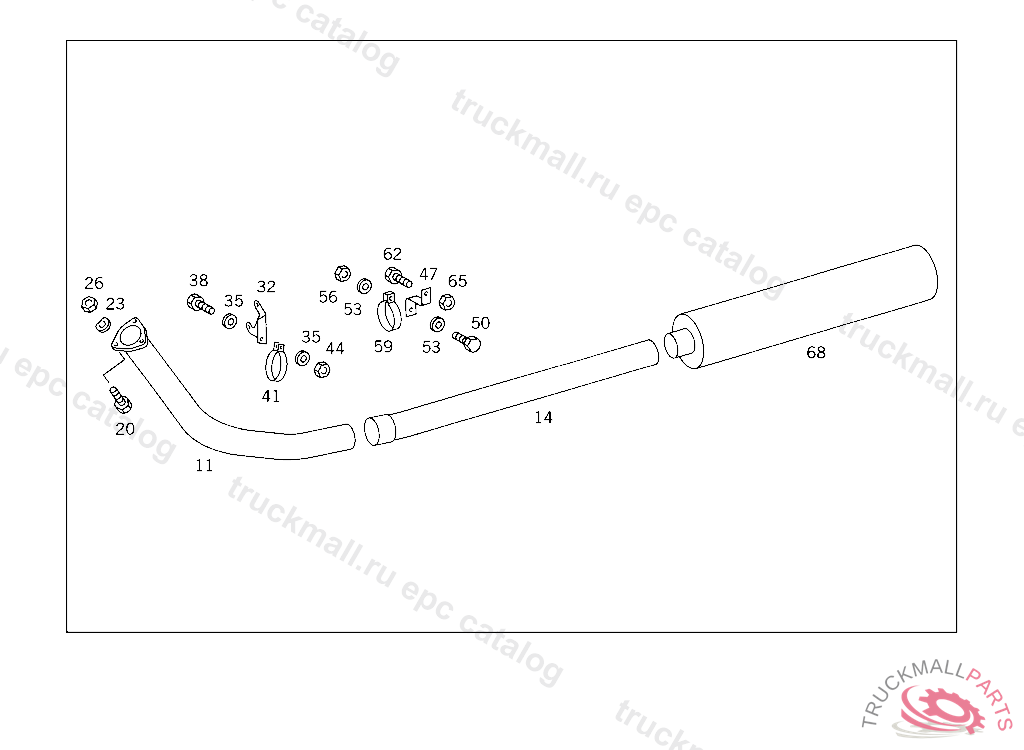

Поз.
Артикул
Описание
11
EXHAUST PIPE FRONT
14
FRONT EXHAUST PIPE FRONT
20
PART NAME MISSING SCREW, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
23
PART NAME MISSING WASHER 1/2
26
PART NAME MISSING NUT 1/2-12 FG8
32
BRACKET AT BELL HOUSING
35
WASHER GROUND CABLE
38
PART NAME MISSING SCREW 3/8-16
41
CLAMP , Replaced By: N071555100501
44
PART NAME MISSING NUT
47
BRACKET EXHAUST PIPE TO SIDE MEMBER
50
PART NAME MISSING SCREW
53
PART NAME MISSING WASHER
56
PART NAME MISSING NUT 1/2-13
59
CLAMP , Replaced By: N071555100501
62
PART NAME MISSING SCREW 3/8-16
65
PART NAME MISSING NUT 1/2-13
68
EXHAUST MUFFLER
